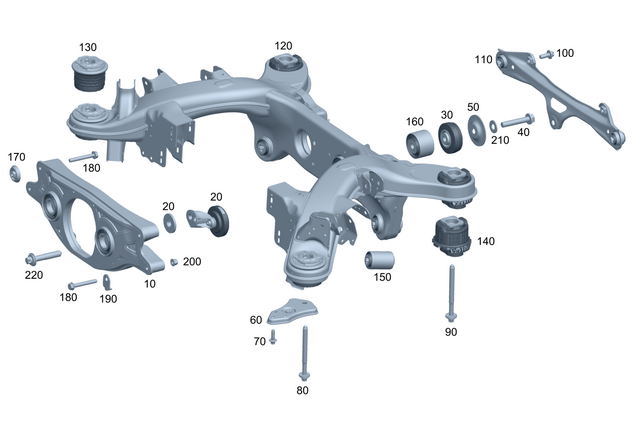

Rear Axle Carrier for 2025 Mercedes-Benz CLE53 AMG
No.
Part # / Description / Price
40
Hexagon Head Screw
Mercedes-Benz
$27.50
Mercedes-Benz Rear axle differential to rear cross brace. Rear axle differential to left rear crossmember.
40
Screw W Washer Assembly Mercedes-Benz
$15.50
Mercedes-Benz Hexalobular Head Screw
Rear axle differential to front cross brace. Screwith bolt, differential, rear axle.
40
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Rear axle differential to rear cross brace. M16x1.5x96. Rear axle differential to left rear crossmember.
50
Stop Plate Mercedes-Benz
$8.00
Mercedes-Benz Rear axle differential to rear cross brace. Rear axle differential to left rear crossmember.
80
Screw W Washer Assembly Mercedes-Benz
$18.50
Mercedes-Benz Rear axle carrier to front frame floor assembly. Rear subframe to frame floor unit, front. Screwith bolt, decoupling element, front, rear axle carrier.
110
130
Axle Sub-Frame Suspension Mercedes-Benz
Mercedes-Benz Axle Subframe Suspension
Left and right front. Decoupling element, rear axle carrier, front.
130
Axle Sub-Frame Suspension Mercedes-Benz
Mercedes-Benz Axle Subframe Suspension
Left and right front. Decoupling element, rear axle carrier, front.
130
Axle Sub-Frame Suspension Mercedes-Benz
Mercedes-Benz Axle Subframe Suspension
Left and right front. Decoupling element, rear axle carrier, front.
140
Axle Sub-Frame Suspension Mercedes-Benz
Mercedes-Benz Axle Subframe Suspension
Left and right rear. Decoupling element, rear axle carrier, rear.
140
Axle Sub-Frame Suspension Mercedes-Benz
Mercedes-Benz Axle Subframe Suspension
Left and right rear. Decoupling element, rear axle carrier, rear.
150
Spring Link Bushing Mercedes-Benz
$40.00
Mercedes-Benz Spring link to rear axle carrier, left and right. Torsion bushings, spring control arm/semi-trailing arm, rear axle.
150
Spring Link Bushing Mercedes-Benz
$45.00
Mercedes-Benz Spring link to rear axle carrier, left and right. Spring link to rear axle bracket left. Torsion bushings, spring control arm/semi-trailing arm, rear axle.
160
Rear Axle Diff Bearing Mercedes-Benz
Mercedes-Benz Rear Axle Diff. Bearing
Rear axle differential to rear cross brace. Rear axle differential to left rear crossmember.
160
Rear Axle Diff Bearing Mercedes-Benz
Mercedes-Benz Rear Axle Diff. Bearing
Rear axle differential to right rear crossmember.
170
Nut-And-Washer Assembly Mercedes-Benz
$8.50
Mercedes-Benz Front cross bridge to upper side part. Upper crossmember mount M10. Cross stabilizer front to side element. Front crossmember to side piece.
180
Hex Head Screw W Flange Mercedes-Benz
$4.70
Mercedes-Benz Hex. Head Screw W Flange
Front cross bridge to upper side part. M10x1,5x76.
190
Eccentric Disk Mercedes-Benz
Mercedes-Benz Front cross bridge to lower side part. 5 MM. Eccentric disk, mounting support, differential, rear axle. 5 MM.
190
Eccentric Disk Mercedes-Benz
Mercedes-Benz Front cross bridge to lower side part. 1 MM. Eccentric disk, mounting support, differential, rear axle. 1 MM.
190
Eccentric Disk Mercedes-Benz
Mercedes-Benz Front cross bridge to lower side part. 2 MM. Eccentric disk, mounting support, differential, rear axle. 2 MM.
190
Eccentric Disk Mercedes-Benz
Mercedes-Benz Front cross bridge to lower side part. 3 MM. Eccentric disk, mounting support, differential, rear axle. 3 MM.
190
Eccentric Disk Mercedes-Benz
$3.90
Mercedes-Benz Front cross bridge to lower side part. 0 MM. Eccentric disk, mounting support, differential, rear axle. 0 MM.
190
Eccentric Disk Mercedes-Benz
Mercedes-Benz Front cross bridge to lower side part. 4 MM. Eccentric disk, mounting support, differential, rear axle. 4 MM.
210
Front Support Washer Mercedes-Benz
$3.00
Mercedes-Benz Window
Crossmember mountDiameter: 14mmInside diameter: 14mmOutside diameter: 30mmMaterial thickness: 2,5mm. Support to left and right bodyDiameter: 14mmInside diameter: 14mmOutside diameter: 30mmMaterial thickness: 2,5mm. Bearing bracket to left and right rear ax ...
