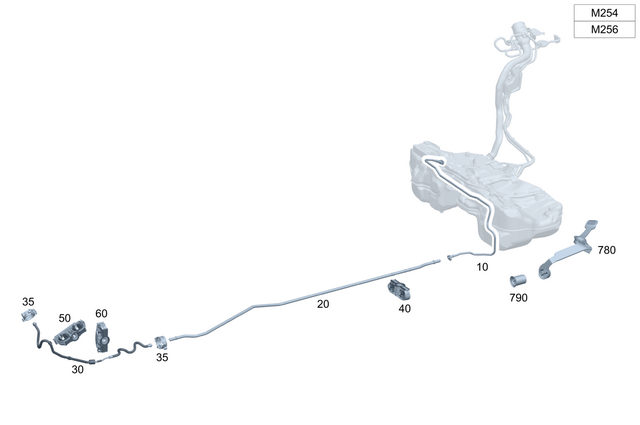

Fuel Lines for 2025 Mercedes-Benz CLE 53 AMG®

Feed line. Feed hose, fuel, fuel tank.

Connecting point to connecting point. Fuel feed line, underbody, fuel tank.

To engine.

Brake line to left rear-end floor. Lines to rear axle carrier, rear and left. Holder, fuel line/purge line. Line mount. Fuel line to underbody. Hydraulic line to holder. Refrigerant lines to holder.

Purge line to main floor. Holder, fuel line/purge line. Line mount. Fuel line to underbody.

To activated charcoal filter. Purge line, activated charcoal canister, purge valve.

Connecting point to connecting point. Purge line, evaporative emission control system, purge valve.

Line to line. Purge line mount.

Activated charcoal canister, fuel system.

To activated charcoal filter. Air filter, evaporative emission control system.

Diagnostic device mount. To holder. Diagnostic device to activated charcoal filter. Diagnostic unit at bracket. Pilot bushing, diagnostic device, leak tightness, fuel tank.

5x16.

To activated charcoal filter. Line, shutoff valve, activated charcoal canister - activated charcoal canister.
