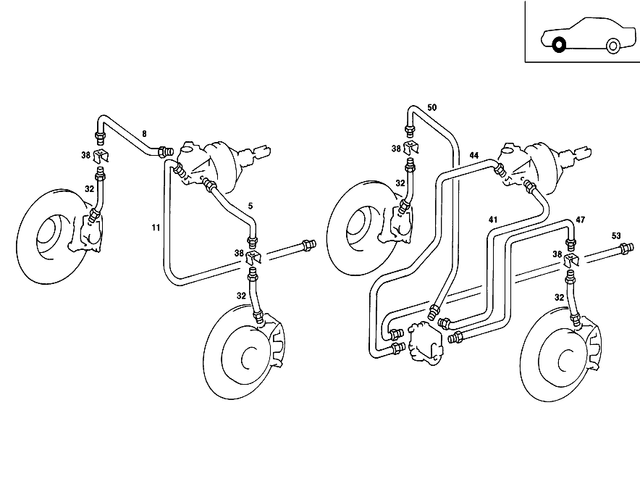

Brake Lines for 1985 Mercedes-Benz 190E
No.
Part # / Description / Price
5
Brake Line
Mercedes-Benz
$42.00
Mercedes-Benz Line
Between hydraulic unit and coupling piece. 4.75 X 0.7 X 1750 MM. Vom ueberg.st.1 zum ueberg.st.2. 4.75 x 0.7 x 1750 mm. Master cylinder connection "h" to hydraulic unit connection "h". 4.75 x 0.7 x 1750 mm. From front master cylinder to asr hydraulic unit. 4.75 x 0.7 x 1750 mm.
8
Line Mercedes-Benz
Mercedes-Benz Red. 580 mm. From t-fitting to brake line coupling. 580 mm. To left rear wheel. 580 mm.
14
Hexagon Spacer Element Mercedes-Benz
$7.25
Mercedes-Benz Connection. M10. Between hydraulic unit lines and left/right rear axle lines. Brake line. Coupling piece to left rear wheel. Vom ueberg.st.2 zum vorderrad links. Adapter. Between the lines.
17
Line Mercedes-Benz
$80.00
Mercedes-Benz Hydraulic line to adapter left rear. 4.75x0.7x2655mm. From adapter fitting to brake pressure regulator. 4.75x0.7x2655mm. From master cylinder,connection "v",to hydraulic unit,connection: "v". 4.75x0.7x2655mm. From hydraulic unit to right front wheel. 4.75x0.7x2655mm. From adapter fitting to distributor. 4.75x0.7x2655mm. From coupling to rear distributor. 4.75x0.7x2655mm.
23
Tapping Screw Mercedes-Benz
$43.50
Mercedes-Benz 6.3x16. Cooling pipe to frame side member. Bracket with motor and gearing to rear pillar. B6.8x16. Bumper face bar upper part to front bumper. Control valve to right wheelhouse. Pipe line to right side member. From master cylinder to front left brake hose.
26
Line Mercedes-Benz
$55.00
Mercedes-Benz From master cylinder to rear hydraulic unit. From hydraulic unit to left front wheel. Right. From front master cylinder to hydraulic unit,connection: "h". "v".
29
Line Mercedes-Benz
$97.00
Mercedes-Benz Master cylinder to hydraulic unit. From accumulator,connection "e",to hydraulic unit,connection: "e". From adjustment switch to central accumulator. From hydraulic unit to left front wheel. Master cylinder connection "v" to charge plunger unit connection "hz1".
38
Retaining Spring Mercedes-Benz
$1.70
Mercedes-Benz Brake hose mounting. Between master cylinder,front axle and bracket,frame. Rear axle. Front left. Brake hose to bracket. Line connections. Bracket, brake line/brake hose. Brake line to brake hose.
41
Line Mercedes-Benz
Mercedes-Benz From master cylinder to front hydraulic unit. From master cylinder to front brake pressure regulator.
44
Brake Line Mercedes-Benz
$44.50
Mercedes-Benz From hydraulic unit to right front wheel. 4.75x0.7x2090mm. From master cylinder to adapter fitting. 4.75x0.7x2090mm. From master cylinder to coupling. 4.75x0.7x2090mm. From master cylinder to rear hydraulic unit. 4.75x0.7x2090mm. Master cylinder connection "v" to charge plunger unit connection "hz1". 4.75x0.7x2090mm. From hydraulic unit to adapter fitting. 4.75x0.7x2090mm. From master cylinder to rear brake pressure regulator. 4.75x0.7x2090mm.
47
Line Mercedes-Benz
$55.00
Mercedes-Benz From distributor to rear right brake hose. From rear master cylinder to hydraulic unit,connection: "v". From hydraulic unit,connection "p",to accumulator,connection: "p". From master cylinder to front hydraulic unit. From master cylinder,connection "v",to hydraulic unit,connection: "v". Red 865 mm. From right rear hydropneumatic spring leg to distributor. From height control valve in engine compartment to left distributor.
50
Brake Line Mercedes-Benz
$75.00
Mercedes-Benz From hydraulic unit to right front wheel 2000 mm. 4.75x0.7x2000 mm. Between hydraulic unit and coupling piece. 4.75X0.7X2000 MM. Between master cylinder for rear axle and bracket for frame. 4.75x0.7x2000 mm. From adapter fitting to brake hose, rear left. 4.75x0.7x2000 mm. Blue 2000 mm. 4.75x0.7x2000 mm. From rear master cylinder to hydraulic unit,connection: "v". 4.75x0.7x2000 mm. From brake power regulator to right front wheel. 4.75x0.7x2000 mm.
83
Rubber Guide Mercedes-Benz
$5.25
Mercedes-Benz Spacer
Brake line to left front wheelhouse panel. Brake line to battery frame,top. Brake line to fire wall. Spacing of brake lines. Brake line to front axle cross member. Left front brake line to connection support. At side member,bottom right.
89
Clamp Mercedes-Benz
Mercedes-Benz Brake line to fire wall. Right front brake line to left top connection support. Fuel lines to vehicle floor. Main cable harness to fire wall. Brake line to cross member. Breather hose to rear axle cross member. Brake line to side member. Fuel line to side member. Fuel lines on floor under rear seat.
92
Clamp Mercedes-Benz
Mercedes-Benz Condensed water drain. Compressor-to-condenser refrigerant line to condenser. Starting cable to side member.
95
Tapping Screw Mercedes-Benz
$1.70
Mercedes-Benz Front fender to bumper bracket. Front fender partition panel to wheelhouse. Front fender to wheelhouse,bottom front. Bracket to frame. 6,3 x 13. Bracket to cowl. As required. 6.3x13. Bracket to wheel arch panel.
107
Holder Mercedes-Benz
$2.90
Mercedes-Benz Clamp
Brake line to transverse control arm, front left. Right front brake line to tunnel, bottom.
113
Holder Mercedes-Benz
Mercedes-Benz Left front brake line to connection support. Brake-clutch-oil-pressure-gauge line to front panel reinforcement. Brake/clutch/oil-pressure-gauge lines to fire wall. Tachometer to bearing brackrt. Connector at side member.
137
Grommet Mercedes-Benz
Mercedes-Benz Brake line through spring tower. Fastening, brake lines left front and right. Front brake lines thru wheel arches. Right front console. Wheelhouse, front right. Brake line thru wheelhouse panel.
