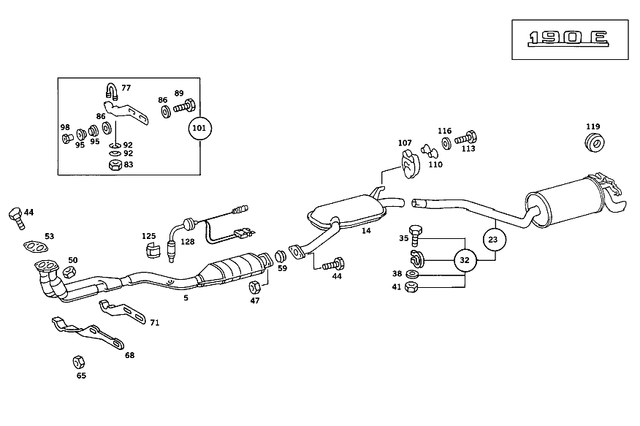

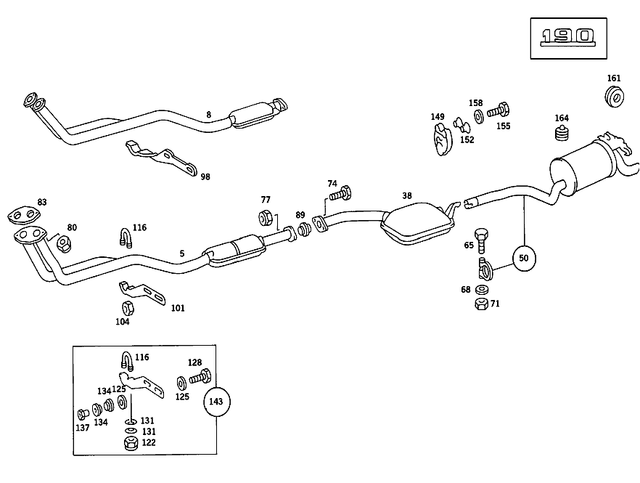

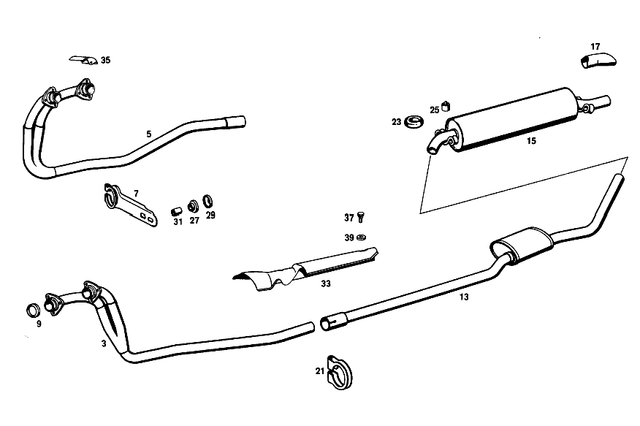

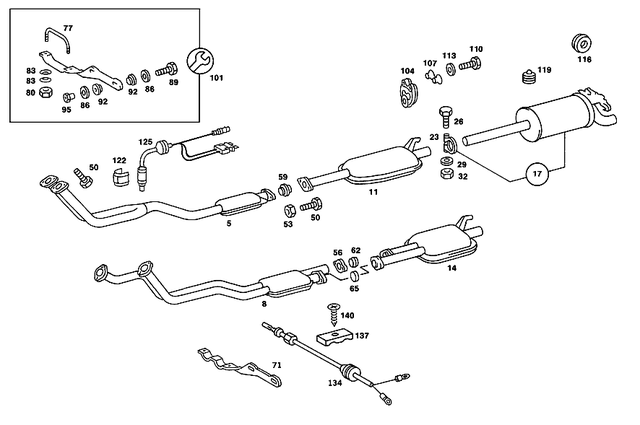

Exhaust System on Gasoline Vehicles for 1985 Mercedes-Benz 190E
No.
Part # / Description / Price
23
Clamp
Mercedes-Benz
$6.00
Mercedes-Benz Front exhaust pipe to central exhaust pipe. Central rear exhaust pipe to rear exhaust pipe. Front exhaust pipe to rear exhaust pipe.
26
Hexagon Head Bolt Mercedes-Benz
$2.90
Mercedes-Benz Window runs and drip mouldings to bottom of doors. Left exhaust pipe to right exhaust pipe.
26
Screw Mercedes-Benz
Mercedes-Benz Rod to spring control arm. Torsion bar to control arm. Front exhaust pipe to central exhaust pipe. Front exhaust pipe to exhaust manifold.
32
Hexagon Nut Mercedes-Benz
$3.00
Mercedes-Benz Nut
M8-10
Diameter: 8mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,25mm
Width across flats: 13mm. Cable to starting motor,terminal 30. Horn to bracket.
53
Nut Mercedes-Benz
$3.90
Mercedes-Benz Front left and right. At clutch bell. Front exhaust line. Exhaust pipe front left to exhaust pipe front right. Exhaust pipe to exhaust manifold. Right muffler to left muffler.
86
Washer Mercedes-Benz
$2.50
Mercedes-Benz Bracket to transmission. Bracket to mounting plate. Front exhaust pipe to mounting plate. Front exhaust pipe to transmission.
92
Elastomer Washer Mercedes-Benz
$5.50
Mercedes-Benz Bracket to transmission. Front exhaust pipe to mounting plate. Front exhaust pipe to transmission. Bracket to mounting plate. Transmission case. For generator at support. For support, fixing plate, at clutch housing.
95
Nut Mercedes-Benz
$6.50
Mercedes-Benz Bracket to transmission. Bracket to mounting plate. Front exhaust pipe to transmission.
110
Hexagon Head Bolt Mercedes-Benz
$3.20
Mercedes-Benz Main muffler suspension. M8x16. Central muffler suspension. Bracket on rear axle m 8x16.
113
116
Rubber Ring Mercedes-Benz
$4.50
Mercedes-Benz Rear muffler suspension. Exhaust pipe suspension. For suspension at tail. Main muffler suspension.
119
Rubber Bumper Mercedes-Benz
$16.50
Mercedes-Benz Central suspension. In front of central muffler. In front of posterior muffler. Behind posterior muffler. Stop above posterior muffler to bracket on cross member. Stop above posterior muffler to side member. Exhaust pipe suspension to tunnel end.
119
Rubber Bumper Mercedes-Benz
$4.90
Mercedes-Benz Rear muffler suspension. Stop above posterior muffler to bracket on cross member. Behind posterior muffler. Front exhaust pipe suspension. Central suspension. Stop above posterior muffler to side member. In front of central muffler. From connection fitting to cab rear panel.
120
Rubber Ring Mercedes-Benz
$5.75
Mercedes-Benz In front of central muffler. Catalyst fixture. Front exhaust pipe to bracket.
122
125
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
50
Hexagon Head Bolt Mercedes-Benz
$4.50
Mercedes-Benz M8X60
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Bracket to exhaust pipe. Front exhaust pipe to exhaust manifold m8x60. Front exhaust pipe to muffler with central pipe. Front exhaust pipe to sliding fit, center. Front right exhaust pipe to front exhaust line. Front exhaust pipe to rear exhaust pipe.
140
Tapping Screw Mercedes-Benz
Mercedes-Benz Housing to instrument panel 4.8x16. 4.8x16. Relay to bracket. 4.8x16. Sensor at cross member under rear seat. 4.8x16. Bracket to c-pillar. 4.8x16. Rear side armrest,right. 4.8x16.
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
158
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
