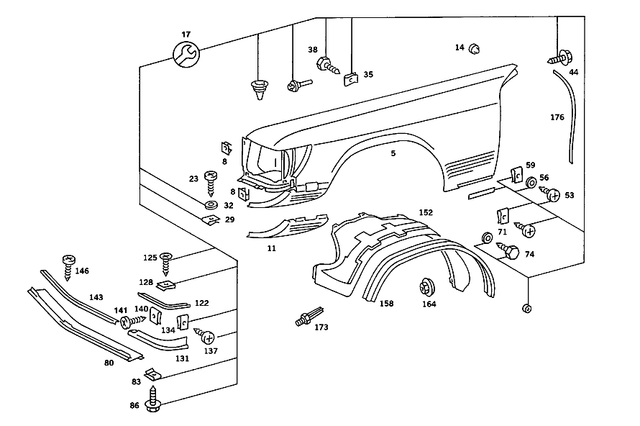

Front Fender for 1986 Mercedes-Benz 560 SL
No.
Part # / Description / Price
8
Nut
Mercedes-Benz
$1.20
Mercedes-Benz Fastening sealings to roof and c-pillar. Lighting unit to front fender. Lining,front,for vario roof.
14
Buffer Mercedes-Benz
Mercedes-Benz Front fender to front panel pillar. (rear body panel),bottom. At tail central piece,bottom. See fig. No.90.
29
32
Window Mercedes-Benz
$1.70
Mercedes-Benz Strut to haeter case. Front fender to front baffle. For ornamental bar at body rear end, lateral. For ornamental bar at rear part, lateral.
35
Nut Mercedes-Benz
Mercedes-Benz Additional blower to front central stiffening. Front fender to wheelhouse. Bracket to cross member.
38
Screw Mercedes-Benz
$3.20
Mercedes-Benz Front fender to wheelhouse. Front fender to front panel pillar. Bracket to heater case. Partition panel to side member and to front stiffening.
44
Screw Mercedes-Benz
$2.40
Mercedes-Benz M6x18. Rear seat bench backrest to rear panel. Fender to body. Front fender to wheelhouse.
59
Clip Nut, Tapping Screw Mercedes-Benz
$2.00
Mercedes-Benz Panelling to right front panel pillar. Radiator grille shell to engine hood. Left,right,and central covering to cross member. Grip handle to rear side part. Mounting, cover. Lighting unit to front fender. Pocket to door.
71
Washer Mercedes-Benz
$1.20
Mercedes-Benz Lever to adjuster link. Bottom frame to roof. Hinge to upholstery panel. Front fender to side member. Engine hood catch upper part to engine hood front bracket. Slide to retaining rail. Amg vehicles.
74
Tapping Screw Mercedes-Benz
$2.20
Mercedes-Benz Front fender to bracket, used with low-mounted wide tires. St6.3x19. Front fender to side member. Air conditioning automatics electronic blower regulator. Expansion tank. Bearing to fire wall. Front fender to front stiffening. Overflow reservoir to wheel arch. Pipe line to partition panel.
80
83
Securing Mercedes-Benz
$3.40
Mercedes-Benz Bracket mounting. Instrument panel to front-end assembly. Central partition panel to engine compartment partition panel. Fire extinguisher bracket. Receiver attachment,tv. Bracket to bracket. Door lining to interior plate.
86
Tapping Screw Mercedes-Benz
Mercedes-Benz Light unit on reinforcement,front, bottom 4.8x19 mm. 4.8x19. Lighting unit to front fender. 4.8x19.
125
Tapping Screw Mercedes-Benz
$1.70
Mercedes-Benz Ashtray housing to instrument panel. Cover rails to rocker panels. Rocker panels to side members. Seal to fabric retaining bow. Seal to fabric retaining rail. Window moulding to bow. Roof rail. Garnish moulding to front fender. Outside.
128
Clip-Type Nut Mercedes-Benz
$1.20
Mercedes-Benz Fuse
Covering to instrument panel. Windshield defroster. Loudspeaker with covering to hat tray. Garnish moulding to front fender.
131
131
140
Nut For Tapping Screw Mercedes-Benz
Mercedes-Benz Securing
Bracket, left to cover. Theft protection at left door. Protective strip center. Fastening for lining. Panelling to roof rail. Additional brake lamp mount. Front covering attachment.
143
158
Seal Mercedes-Benz
Mercedes-Benz Lateral right. Only used with air conditioner 450 mm. Left fender. Partition panel to fire wall. Right 450 mm. Partition panel and front fender 250 mm.
