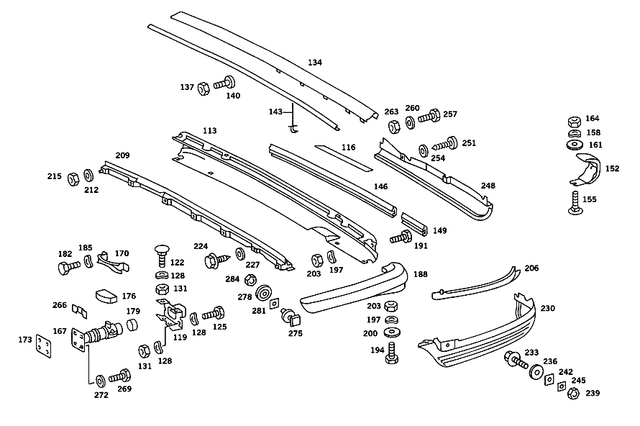

Rear Bumper for 1986 Mercedes-Benz 560 SL
No.
Part # / Description / Price
122
Screw
Mercedes-Benz
$2.90
Mercedes-Benz Mount, step with mounting console
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. RETAINER TO CENTRAL PART
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
140
Screw Mercedes-Benz
$2.90
Mercedes-Benz Bracket to whelhouse flange. Bracket to wheelhouse. Ground cable to rear pillar. Bracket to antenna.
143
Intermediate Layer Mercedes-Benz
Mercedes-Benz Pad
Between bumper face bar central part and moulding 1570 mm. Rear central 1530 mm. 1610 mm.
179
182
Screw Mercedes-Benz
$24.50
Mercedes-Benz M8x14. Angle to wheelhouse bracket. Energy-absorbing unit to central part. Bracket to radiator mounting console used without air conditioner.
191
Hexagon Head Bolt Mercedes-Benz
$3.20
Mercedes-Benz Screw
Main muffler suspension. M8x16. Central muffler suspension. Bracket on rear axle m 8x16.
212
Washer Mercedes-Benz
Mercedes-Benz Wiper system mounting plate to partition panel center. Battery frame,front. Brake power regulator to bracket. Battery frame to fire wall. Cooling pipe to frame side member. Hydraulic unit to bracket. Strut to stiffening,front central. Temperature sensor to front bumper.
224
Tapping Screw Mercedes-Benz
$7.50
Mercedes-Benz Radiator grille shell to engine hood. Covering to seat. Partition panel to side member and to front stiffening. Bracket mounting. Grille to radiator grille shell, top and bottom 5,5x16 mm. Low pressure hose to carrier. On side member. Bearing to fire wall. Covering to body. Water pipe to side member.
269
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Fastening, guard plate. M8X25-10.9
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Bracket to transmission. Bumper to body.

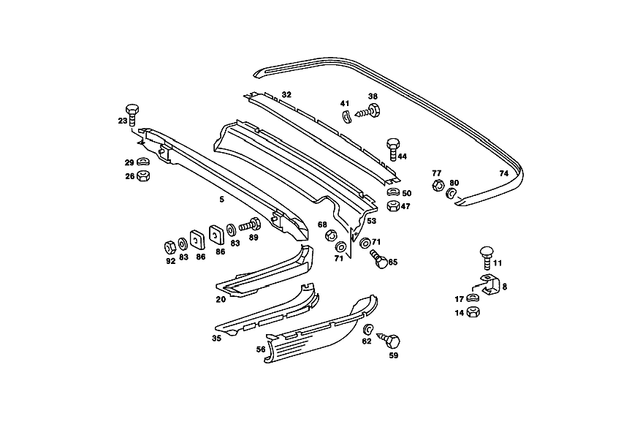

No.
Part # / Description / Price
11
Screw Mercedes-Benz
$2.70
Mercedes-Benz Left and right ornamental covers to central ornamental cover. Bracket to bumper. Left bumper face bar to right bumper face bar. Stiffening to front bumper. Covering to front bumper. Energy-absorbing unit and mounting to rear bumper.
14
Wiper Arm Nut Mercedes-Benz
$3.40
Mercedes-Benz Nut
Master cylinder to brake booster. Rear bumper to rear body panel cross member. Electric cable to alternator. Pedal assembly to fire wall. Front bumper to cross member. Armrest to backrest. Bracket to bumper. Left stiffening to right stiffening. On front door,bottom.
17
Spring Washer Mercedes-Benz
$1.50
Mercedes-Benz Wiper arm with blade to wiper spindle. Drive rod to crank arm. Wiper arm to wiper shaft. Wiper arm on spindle.
23
Hexagon Head Bolt Mercedes-Benz
$3.20
Mercedes-Benz Main muffler suspension. M8x16. Central muffler suspension. Bracket on rear axle m 8x16.
38
Tapping Screw Mercedes-Benz
$2.00
Mercedes-Benz Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
89
Hexagon Head Bolt Mercedes-Benz
$3.40
Mercedes-Benz Screw
Fastening, spare wheel well. M10X20
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Hinge to door wing. Engine rear support to floor. Cover to axle housing.
92
Hexagon Nut Mercedes-Benz
$2.00
Mercedes-Benz Cable to cable connector. Front bumper to cross member. Hinge lever to support upper part. Rear bumper to rear body panel cross member. Bell housing with transmission to intermediate flange.
