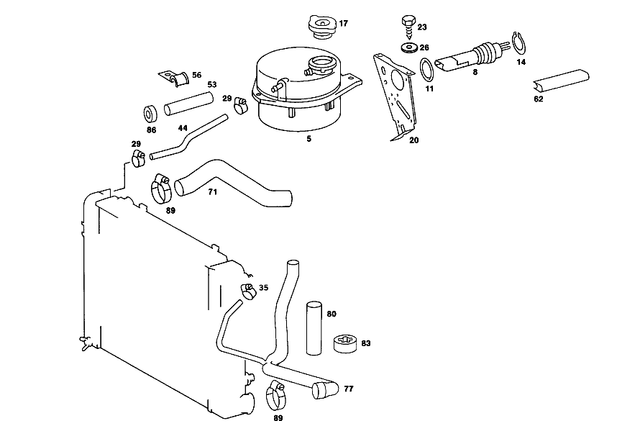

Expansion Tank, Mounting and Hoses for 1986 Mercedes-Benz 560SL
No.
Part # / Description / Price
14
Retaining Ring
Mercedes-Benz
$9.75
Mercedes-Benz TO 1265001549. 30X1.5X7
Inside diameter: 30mm
Material thickness: 1,5mm. DRIVE SHAFT. 30X1.5X7
Inside diameter: 30mm
Material thickness: 1,5mm. TO 126 500 15 49. 30X1.5X7
Inside diameter: 30mm
Material thickness: 1,5mm.
23
Tapping Screw Mercedes-Benz
$2.20
Mercedes-Benz Screw
Cover on bumper. 4,8X19
Diameter: 4,8mm
Thread code letter: R.
35
Clamp Mercedes-Benz
Mercedes-Benz Cooling water hose to expansion tank. 25-40mm. Filling hose to expansion tank. 25-40mm. From expansion tank to radiator. 25-40mm.
44
Hose Mercedes-Benz
$50.00
Mercedes-Benz FROM EXPANSION TANK TO ENGINE 1200 MM. 8X15 MMInside diameter: 8mmOutside diameter: 15mmMaterial thickness: 3,5mm. FROM EXPANSION TANK TO ENGINE 1575 MM. 8X15 MMInside diameter: 8mmOutside diameter: 15mmMaterial thickness: 3,5mm. FROM EXPANSION TANK TO RAD ...
56
Fastening Clamp Mercedes-Benz
Mercedes-Benz Bracket to wheel arch panel. Compressor-to-condenser refrigerant line to side member. Main cable harness to left cross member at instrument panel. From expansion tank to radiator.
62
Edge Guard Mercedes-Benz
Mercedes-Benz Protection against scoring 25 mm. 330mm. At bracket. Bracket to c-pillar. At cushion frame. From radiator to expansion tank. Electric cable to seat cushion and to height adjustment 170mm. 100 mm.
83
Rubber Ring Mercedes-Benz
Mercedes-Benz Used without air conditioner. Protection against scoring for upper cooling water hose. To hose. To oil line. Cooling water hose,bottom.
89
Hose Clamp Mercedes-Benz
$3.50
Mercedes-Benz Clamp
GROUND CABLE TO SIDE MEMBER. 45-55 MMInside diameter: 45mmOutside diameter: 55mmMaterial thickness: 1mmWidth across flats: 7. BETWEEN ENGINE, HOUSING AND RADIATOR. 45-55 MMInside diameter: 45mmOutside diameter: 55mmMaterial thickness: 1mmWidth across flats ...
89
Hose Clamp Mercedes-Benz
Mercedes-Benz Electric change-over valve. 40-50 mm. Cooling water hose to radiator. 40-50 mm. Cooling water pipe to side member. 40-50 mm. Cooling water hose to thermostat 40 - 50mm. 40-50 mm. Hose to radiator,thermostat,and water pump. 40-50 mm. From body to blower. 40-50 mm.
101
Tapping Screw Mercedes-Benz
$2.20
Mercedes-Benz Front fender to bracket, used with low-mounted wide tires. St6.3x19. Front fender to side member. Air conditioning automatics electronic blower regulator. Expansion tank. Bearing to fire wall. Front fender to front stiffening. Overflow reservoir to wheel arch. Pipe line to partition panel.
107
Hose Mercedes-Benz
$32.50
Mercedes-Benz 160 mm. 13.3x3 mm. From fuel filter to feed line. 13.3x3 mm. 300 mm. 13.3x3 mm. 110mm. 13.3x3 mm. Order by the meter. 13.3x3 mm. 250 mm. 13.3x3 mm. From activated charcoal filter to regeneration valve. 13.3x3 mm. 100 mm from fuel return line to fuel tark. 13.3x3 mm.
110
Feed-Through Grommet Mercedes-Benz
$2.20
Mercedes-Benz For water drain pipe opening in body front end from chassis 8512055. Cable through vehicle floor. Overflow reservoir to wheel arch. Hose. Rear lamp cable harness to rear body panel. Cable to alternator. Cable harness thru rear door interior plate. From expansion tank to overflow reservoir. Mounting pipe line. At bottom covering, for radiator circulating air.
No.
Part # / Description / Price
23
Tapping Screw Mercedes-Benz
$2.00
Mercedes-Benz Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
