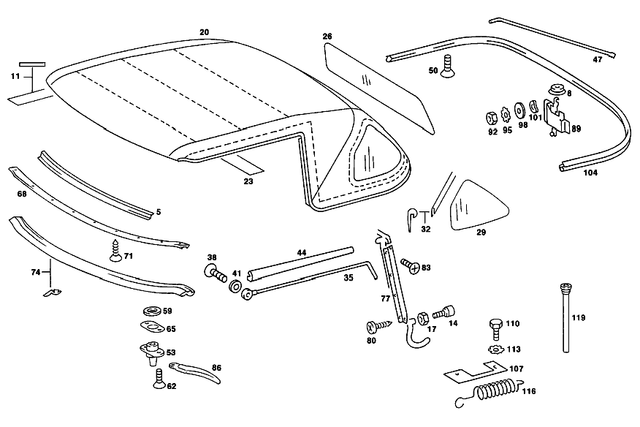

Folding Top Lining for 1986 Mercedes-Benz 560SL
No.
Part # / Description / Price
38
Screw
Mercedes-Benz
$9.00
Mercedes-Benz PULLS TO FOLDING TOP FRONT CROSS FRAME
Diameter: 4mm
Strength / hardness class: 4.8
Thread code letter: M
Thread pitch: 1mm.
71
Tapping Screw Mercedes-Benz
Mercedes-Benz Cap to body front end,top. Roof front rail. Rail to roof rail. Top pad. Sealing rail to windshield pillar. Sealing rail to folding top frame. Cap to cowl. Folding top lining.
80
Tapping Screw Mercedes-Benz
$2.40
Mercedes-Benz PLATE TO BODY. 4,2X13
Diameter: 4,2mm
Thread code letter: R. ATTACHMENT PLATE. 4,2X13
Diameter: 4,2mm
Thread code letter: R. Plate to longitudinal member LINKS. 4,2X13
Diameter: 4,2mm
Thread code letter: R. REAR DOOR,BOTTOM. 4,2X13
Diameter: 4,2mm
Thread code letter: R.
83
Screw Mercedes-Benz
Mercedes-Benz Bolt
Cover rail to folding top pillar. Fabric retaining rail to folding top pillar.
83
Screw Mercedes-Benz
Mercedes-Benz M4X10
Diameter: 4mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Lateral left and right nozzles to instrument panel. Glove compartment lid interior part m 4x10. Microphone. Mounting, cover. Handle to glove compartment lid m 4x10.
95
Tooth Lock Washer Mercedes-Benz
Mercedes-Benz Fresh-air flap to hinges. Fastener to folding top case, center. Lock upper part to folding top case cover.
98
Washer Mercedes-Benz
Mercedes-Benz Wiper system mounting plate to partition panel center. Battery frame,front. Brake power regulator to bracket. Battery frame to fire wall. Cooling pipe to frame side member. Hydraulic unit to bracket. Strut to stiffening,front central. Temperature sensor to front bumper.
107
110
Hexagon Head Bolt Mercedes-Benz
$2.40
Mercedes-Benz Shackle mounting. M8X30
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. At support. Instrument panel to left / right A-pillar and wind deflector M 8X30. Seat framework to backrest. Child's seat mounting. Child seat safety catch. Left and right outer guard plate to rear panel. Rear m8x30. Crossmember to a-pillar.
113
Tooth Lock Washer Mercedes-Benz
Mercedes-Benz Wiper linkage to motor drive rod. Lever to operating unit. Folding top frame assembly to console. Levers to door shells. Lever to bearing bracket. Brake anchor plate to rear axle tube.
