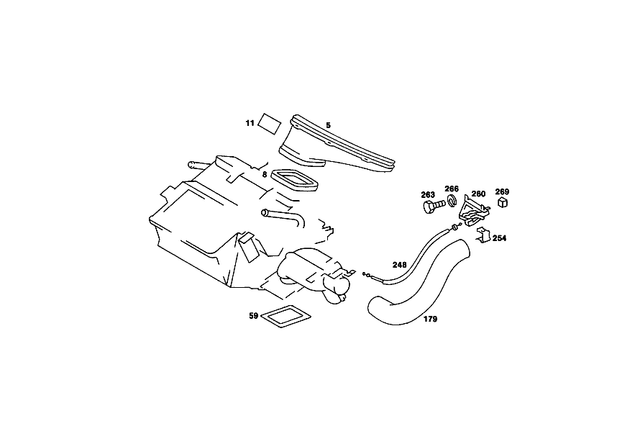

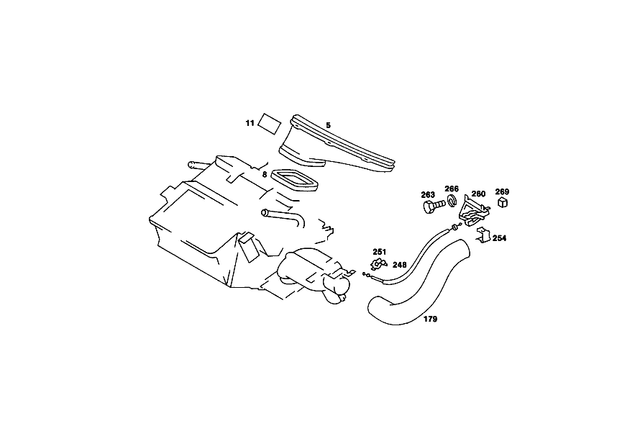

Air Ducting for 1986 Mercedes-Benz 560SL
No.
Part # / Description / Price
11
Felt Strip
Mercedes-Benz
$3.90
Mercedes-Benz Adhesive strip. 100X70X3MM. Damping. 100X70X3MM. Loading floor,left. 100x70x3mm. Via screws to steering, left and right. 100X70X3MM. Left support. 100X70X3MM. On folding top case cover. 100x70x3mm. Rear seat bottom. 100x70x3mm. Below rear seat at left on cardan shaft tunnel. 100x70x3mm.
32
Rubber Bumper Mercedes-Benz
Mercedes-Benz Rear wheelhouse,inside 8 mm. To plug the mounting holes in engine support and tunnel. To plug the condensed water drain hole in central air duct.
71
Tapping Screw Mercedes-Benz
Mercedes-Benz Armrest,front door. 4.8x19. Bottom pad to instrument panel. 4.8x19. Sun visor to roof rail 4,8x19. 4.8x19. Bracket to instrument panel. 4.8x19. Air duct to instrument panel. 4.8x19.
122
Tapping Screw Mercedes-Benz
Mercedes-Benz Air/water duct to cross member. 4,8x16. Covering to engine hood. 4,8x16.
Not For Sale
137
Tapping Screw Mercedes-Benz
Mercedes-Benz Bracket to pillar. From liquid tank to expansion valve. Tube to rear pillar. Abs control unit. Control unit to mounting plate. Time-lag relay to front panel pillar.
140
Tooth Lock Washer Mercedes-Benz
$1.90
Mercedes-Benz M5. Clamp to bracket. Latch-type lock to rear lid. Rods to linkage. Sliding angle to sliding roof plate. Window regulator rails and retaining rails to glass panes. Engine hood release cable to front panel,bottom. Cable to fuel pump. Ventilator windows to doors, top.
251
Clamp Mercedes-Benz
Mercedes-Benz To mount wire cable to heater box. Wire cable to heater case. Cable pull. Cable casing to heater case. Wire cables to heater box.
263
Screw Mercedes-Benz
Mercedes-Benz M5x12. Bracket to auxiliary fan. Loudspeaker. Sliding angle to sliding roof plate. Starting cable to oil dipstick guide tube. Bracket to antenna. Safety hook to engine hood. Operating unit to instrument panel. Pump to bracket.
278
No.
Part # / Description / Price
30
Blind Rivet Mercedes-Benz
$2.70
Mercedes-Benz Nut
Bracket mounting. Ornamental cover & drip moulding to windshield. Mounting bumper. Ornamental cover & drip moulding to roof.
38
Clamp Mercedes-Benz
$1.20
Mercedes-Benz Wire cable to heater case. Operating unit wire cable to legroom lever. At nozzle in the rear. Central air duct. Wire cable to blower. Rear fresh air control wire cable.
62
101
Clip Nut, Tapping Screw Mercedes-Benz
$2.00
Mercedes-Benz Panelling to right front panel pillar. Radiator grille shell to engine hood. Left,right,and central covering to cross member. Grip handle to rear side part. Mounting, cover. Lighting unit to front fender. Pocket to door.
107
183
Temperature Sensor Mercedes-Benz
Mercedes-Benz Outside. Outdoor temperature;at central inside part below windshield.
197
Hose Mercedes-Benz
Mercedes-Benz Between air-blast nozzle and front panel pillar. From air-blast nozzle to front panel pillar.
293
Expansion Rivet Mercedes-Benz
$1.40
Mercedes-Benz Covering to body. Control unit to the right of legroom. Covering to outside central piece. Starting cable to unit partition panel. 5 mm. Covering to cross member. For partition plate at wheel arch pan and reinforcement plate. See group 69,fig.no.: 53 see group 69,fig.no.: 56. Ashtray to tray. Switch to partition panel.
