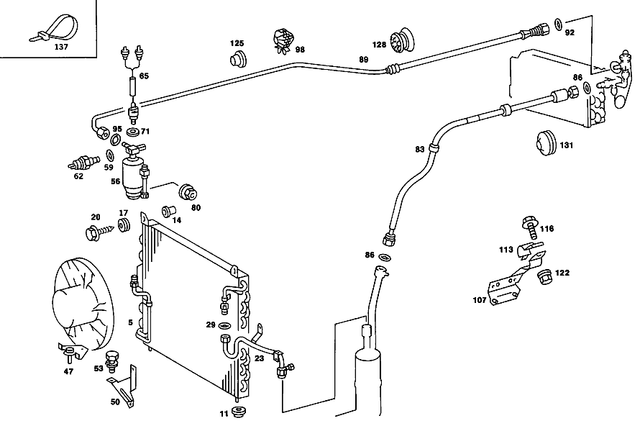

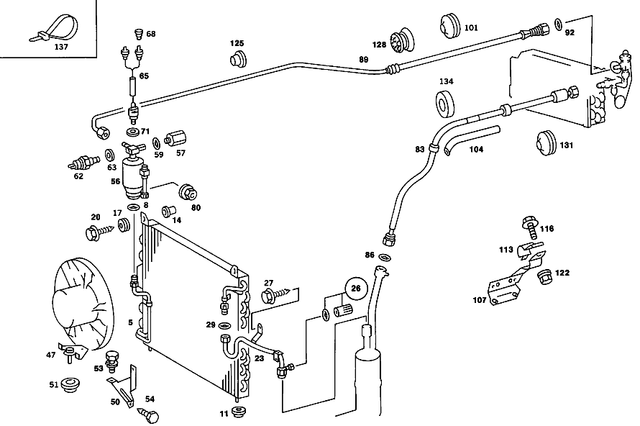

Refrigerant Line Arrangement for 1986 Mercedes-Benz 560SL
No.
Part # / Description / Price
14
Collar Sleeve
Mercedes-Benz
Mercedes-Benz Gearing to bracket. Partition-panel-to-compressor refrigerant line to wheelhouse. Pipe line to cross member. Condenser to stiffening and to front cross member. Line to fire wall.
20
Tapping Screw Mercedes-Benz
Mercedes-Benz Light unit on reinforcement,front, bottom 4.8x19 mm. 4.8x19. Lighting unit to front fender. 4.8x19.
29
Sealing Ring Mercedes-Benz
Mercedes-Benz Line to air conditioning system. 14X2 MMDiameter: 18mmStrength / hardness class: EPDMInside diameter: 14mmOutside diameter: 18mmMaterial thickness: 2mm. TUBING AT EXPANSION VALVE. 14X2 MMDiameter: 18mmStrength / hardness class: EPDMInside diameter: 14mmOut ...
53
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Bolt and Washer Assembly
Additional blower to front central stiffening. Bracket to auxiliary fan.
Not For Sale
59
Sealing Ring Mercedes-Benz
$3.70
Mercedes-Benz Seal Ring
Heater. 7.5X2.0Strength / hardness class: EPDMInside diameter: 7,5mmOutside diameter: 11,5mmMaterial thickness: 2mm. HEATING. 7.5X2.0Strength / hardness class: EPDMInside diameter: 7,5mmOutside diameter: 11,5mmMaterial thickness: 2mm. MOUNTING PLATE TO DRI ...
62
65
Switch Mercedes-Benz
$72.00
Mercedes-Benz At liquid tank. 16 bar. Additional blower. 16 bar. Thermostat to liquid tank. 16 bar.
71
Sealing Ring Mercedes-Benz
Mercedes-Benz Pressure switch to liquid tank used for additional blower. 9.0 x 1.8 mm. Pressure switch to liquid tank used for compressor. 9.0 x 1.8 mm. At liquid tank. 9.0 x 1.8 mm. Refrigerant reservoir valve. 9.0 X 1.8 MM. Sensor. 9.0 x 1.8 mm.
80
Hexagon Nut Mercedes-Benz
$3.40
Mercedes-Benz Nut
M6. Bracket to water tank. Mounting parts. Control unit. Bracket mounting. Brake booster assembly to asr bracket. Fuel lines to cowl. Transistorized ignition switchgear to wheelhouse panel. Roller blind to rear panel covering, top.
107
113
116
Screw Mercedes-Benz
Mercedes-Benz Wiper motor to inside central part below windshield. M6 x 20. Housing to fire wall. Window regulator to rear side part. Evaporator-to-compressor refrigerant line. Lock to tail central part. Pipe line to cross member. From evaporator to compressor line. Pressure converter to bracket.
No.
Part # / Description / Price
27
Screw Mercedes-Benz
Mercedes-Benz Alarm unit to bracket. Wiper system mounting plate to pedal assembly bracket. Exhaust pipe. On heater unit bracket. Bracket to pedal bearing bracket. At cross member below instrument panel. Front central stiffening to lighting units,left and right.
54
Tapping Screw Mercedes-Benz
$2.00
Mercedes-Benz Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
63
Sealing Ring Mercedes-Benz
Mercedes-Benz Seal Ring
Pressure switch to liquid tank used for additional blower. 9.0 x 1.8 mm. Pressure switch to liquid tank used for compressor. 9.0 x 1.8 mm. At liquid tank. 9.0 x 1.8 mm. Refrigerant reservoir valve. 9.0 X 1.8 MM. Sensor. 9.0 x 1.8 mm.
68
Protective Cap Mercedes-Benz
Mercedes-Benz Pressure switch to liquid tank used for additional blower. Door contact switch. Front door.
83
131
Grommet Mercedes-Benz
Mercedes-Benz From expansion valve to compressor. Return line thru fire wall. Feed line to fire wall. For fuel hose through wall, spare wheel recess. For starter cable through partition wall. (starter cable through pedal floor). (to seal vacuum connection at ate booster brake). Hose thru fire wall.
134
Ring Mercedes-Benz
$8.50
Mercedes-Benz Evaporator-to-pipe-line hose. Hood support. Feed line. From engine to heating water cock to 116 831 03 94. From expansion valve to compressor.
