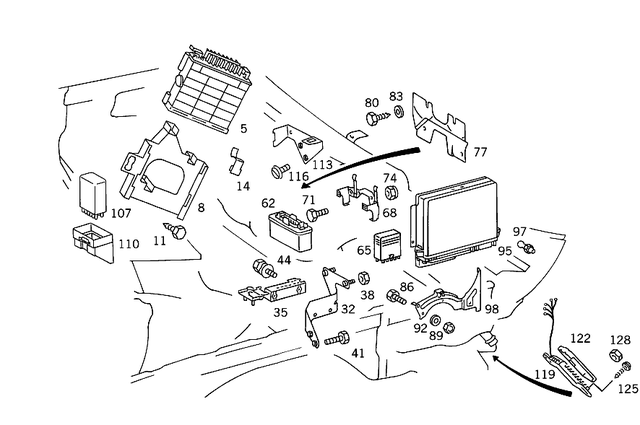

Control Units for 1990 Mercedes-Benz 560SEL
No.
Part # / Description / Price
11
Tapping Screw
Mercedes-Benz
$2.00
Mercedes-Benz Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
41
Bolt And Washer Assembly Mercedes-Benz
Mercedes-Benz Bracket to apparatus plate. Bracket to rear pillar. Temperature sensor to front bumper. Fuse box to bracket. Bracket mounting.
44
Hexagon Head Bolt Mercedes-Benz
$2.20
Mercedes-Benz Bolt and Washer Assembly
Ground cable to damper strut dome. Bracket.
71
Screw Mercedes-Benz
$13.00
Mercedes-Benz Bracket to fire wall. Bracket to water tank. Battery frame to rear end floor, lateral right. Final control element to bracket. Intake manifold ground. Starting motor cable harness bracket to oil filter housing. Brake pedal sensitive parking shift lock m 6x14. Rail to rear subframe. Abs control unit.
74
Hexagon Nut Mercedes-Benz
$3.40
Mercedes-Benz Nut
M6. Bracket to water tank. Mounting parts. Control unit. Bracket mounting. Brake booster assembly to asr bracket. Fuel lines to cowl. Transistorized ignition switchgear to wheelhouse panel. Roller blind to rear panel covering, top.
86
Hexagon Head Bolt Mercedes-Benz
$3.50
Mercedes-Benz Screw
Amplifier at c-pillar. Amplifier to bracket. Reinforcem. At bracket, left.
116
Screw Mercedes-Benz
$2.20
Mercedes-Benz Bracket to partition. Bearing clamp. Bracket to left and right front door panelling.
122
125
Tapping Screw Mercedes-Benz
$2.40
Mercedes-Benz Panelling to right front panel pillar. Covering to central partition panel cross member. Covering below instrument panel,left. Bracket to spare wheel well.
128
Nut Mercedes-Benz
$1.90
Mercedes-Benz Hex Nut
Control unit fixture. Antenna fastening in center console. Pedal assembly hydraulics. Cable connector to fire wall. Mounting parts. Mounting, clutch cable. Multiway connector to fire wall. Fuse box to fire wall. Fire wall,right,below plug distributor.
No.
Part # / Description / Price
117
Clamp Mercedes-Benz
Mercedes-Benz Belt lock to seat rail. Cable harness to roof rail. Electric cable to bracket. At bracket. Blower regulator plug to air conditioner case. Cross member below front seat. Electric cable to rear lid. Test plug. Rear lid lock.
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
