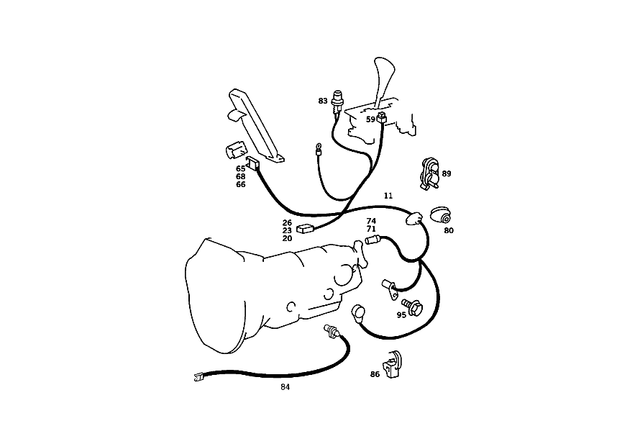

Electrical Parts Used for Transmission for 1990 Mercedes-Benz 560SEL
No.
Part # / Description / Price
11
20
Plug Housing
Mercedes-Benz
$4.90
Mercedes-Benz 4-matic cable harness plug-connection. 8-pin rk4.0. Cockpit cable harness. 8-pin rk4.0. Rear speed sensor plug connection, bipolar. 8-pin rk4.0. Rpm sensor asr. 8-pin rk4.0.
23
Cap Mercedes-Benz
Mercedes-Benz To 006 545 81 28,009 545 53 28. Electrical plug-in jumper for sliding roof motor to a 009 545 53 28.
26
Contact Pin Mercedes-Benz
$2.40
Mercedes-Benz 4.0 MM. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 4.0Release tool: W220 589 01 99 52. TO 009 545 53 28/56 28. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: R ...
47
Receptacle Housing Mercedes-Benz
Mercedes-Benz Interior lamps. 2-pin. Belt locking retractor. 2-pin. Dome lamp,front. 2-pin. Unipolar. 2-pin. Economy drive switch. 4-pole. 2-pin. Trunk lid. 2-pin. Stop light switch 2 polig. 2-pin. Asd/asr. 2-pin. Thermo-switch heating washer system. 2-pin. Parking brake control. 2-pin.
53
Housing Upper Part Mercedes-Benz
$2.70
Mercedes-Benz To 008 545 20 28,011 545 10 28. Rear fuel pump cable harness plugconnection.
56
Contact Socket Mercedes-Benz
$3.40
Mercedes-Benz 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
68
Contact Socket Mercedes-Benz
$2.90
Mercedes-Benz 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
80
Grommet Mercedes-Benz
Mercedes-Benz Blower. Electric cable thru fire wall. Fuel pump branch-off to luggage compartment floor. Automatic transmission branch-off. Electric cable thru tunnel. Scuff protection for electric cables left.
83
Socket Mercedes-Benz
Mercedes-Benz Lighting of gear indicator. Lamp control. Tell-tale lamp airbag. Windshield-washer-fluid control. Shift gate illumination. Bipolar. Tell-tale lamp abs/asr. Pre-glow indicator. Tell-tale lamp 4-matic. (oxygen sensor exchange indicator).
86
95
Screw Mercedes-Benz
$2.00
Mercedes-Benz Pane wiper linkage to central part. Strut to main floor and to cross member. Intermediate layer and wiper linkage to central inside part. Strut to stiffening and to front cross member. Air duct to central inside part.
107
Sieve Insert Mercedes-Benz
$4.50
Mercedes-Benz Solenoid valve. To valve. Exhaustgas recirculation. Electric change-over valve.
155
Plug Pin Mercedes-Benz
Mercedes-Benz To 011 545 10 28. 4.0 mm. To 009 545 14 28. Tempomat(cruise control) plug-connect. To 012 545 84 28. 4.0mm2.
167
Cap Mercedes-Benz
Mercedes-Benz Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
