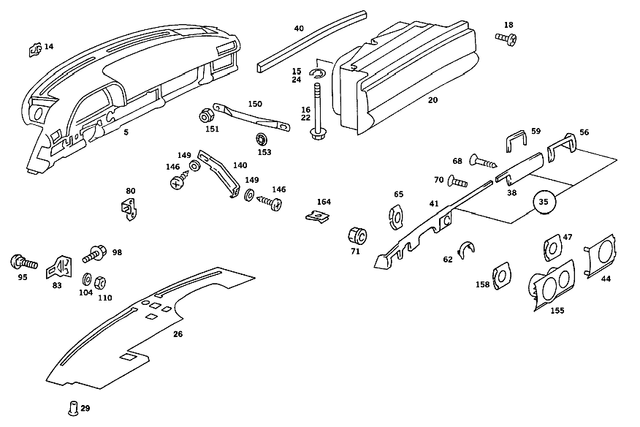

Instrument Panel & Body Parts Used for Co-Driver Airbag for 1990 Mercedes-Benz 560SEL
No.
Part # / Description / Price
18
Cap Bolt W Cross Recess
Mercedes-Benz
Mercedes-Benz Cap Bolt W. Cross Recess
Airbag in glove compartment. Glove compartment lid stop.
26
70
71
Nut Mercedes-Benz
$1.20
Mercedes-Benz Garnish moulding to instrument panel. Garnish moulding to covering. Bottom garnish moulding to front door, rear.
80
98
Bolt And Washer Assembly Mercedes-Benz
Mercedes-Benz Instrument panel to front panel pillar. M6x16-8.8. Foot operated parking brake to bracket. Hydraulic unit to bracket. Screening to partition panel.
104
Window Mercedes-Benz
Mercedes-Benz Instrument panel to front panel pillar. Pistol-grip hand brake to front panel pillar. Instrument panel to bracket. Instrument panel to frame. Door plate,rear.
110
Nut Mercedes-Benz
Mercedes-Benz Pipe line to shock absorber leg reinforcement. Pipe line to valve. Hinge lever to engine hood.
146
149
Washer Mercedes-Benz
Mercedes-Benz Mounting parts. Fire wall bracing to support. Bracket mounting. Engine hood rest to fender. Garnish moulding to radiator grill. Operating unit vacuum switch. Speedometer, instrument cluster, and tachometer. Vacuum element to front door.
149
Window Mercedes-Benz
$1.70
Mercedes-Benz Strut to haeter case. Front fender to front baffle. For ornamental bar at body rear end, lateral. For ornamental bar at rear part, lateral.
150
173
Tapping Screw Mercedes-Benz
Mercedes-Benz Support. Covering to instrument panel 2.9x25. Loudspeaker with covering to hat tray.
176
Clip-Type Nut Mercedes-Benz
$1.20
Mercedes-Benz Covering to instrument panel. Windshield defroster. Loudspeaker with covering to hat tray. Garnish moulding to front fender.
185
186
Tapping Screw Mercedes-Benz
Mercedes-Benz Fire wall bracing to support. Central left and right rear ducts to main floor. Covering to instrument panel 4.2x13. Covering to instrument panel,bottom. Strut to instrument panel. Rear cross member. Bottom covering in housing b 4.2x13. Housing to tunnel. Air conditioning automatics electronic blower regulator.
192
Securing Mercedes-Benz
$3.40
Mercedes-Benz Bracket mounting. Instrument panel to front-end assembly. Central partition panel to engine compartment partition panel. Fire extinguisher bracket. Receiver attachment,tv. Bracket to bracket. Door lining to interior plate.
195
Tapping Screw Mercedes-Benz
Mercedes-Benz Handle. 4,8x13. Coverings. 4,8x13. Bracket mounting aeg. 4,8x13. Angle to front cross member. 4,8x13. Plug to bracket. 4,8x13. Crank operated window bracing to lock side,top. 4,8x13. At sensor. 4,8x13. Left. 4,8x13. Bracket to wheelhouse. 4,8x13.
201
Spring Nut Mercedes-Benz
$2.00
Mercedes-Benz Securing
Control unit to c-pillar. Bracket to c-pillar. Anti-tow-away sensor. Bracket mounting aeg. Instrument panel to cross member. Abs control unit. Control unit to mounting plate. Bracket to wheelhouse. Electronic gas control unit. Instrument panel to knee protection pad.
210
Tapping Screw Mercedes-Benz
$14.50
Mercedes-Benz Engine hood release cable handle to left front panel pillar. Covering below instrument panel,left. Engine hood release cable to front panel,bottom.
228
Screw Mercedes-Benz
Mercedes-Benz Reinforcement and covering to elbow pipe. Instrument panel to frame. Motor to base plate. Motor to window regulator.
231
Nut Holder Mercedes-Benz
$17.00
Mercedes-Benz Bracket to left wheelhouse. Rear seat bench backrest to rear panel. Wheel well reinforcement, left. Mounting to body.
255
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Screw
Rear lid to hinge lever. Drive to rear pillar. Pipe line to shock absorber leg reinforcement. Strut to front cross member. Bracket to car floor. Cooling pipe to front cross member. Engine hood upper catch to engine hood. Partition panel. Strut to stiffening,front central.
264
Plug-In Fastener Mercedes-Benz
Mercedes-Benz Air duct to heater case. Covering to instrument panel,bottom. Covering to front panel pillar and heater case. Instrument panel lower part.
270
Clip Nut, Tapping Screw Mercedes-Benz
$2.00
Mercedes-Benz Panelling to right front panel pillar. Radiator grille shell to engine hood. Left,right,and central covering to cross member. Grip handle to rear side part. Mounting, cover. Lighting unit to front fender. Pocket to door.
282
