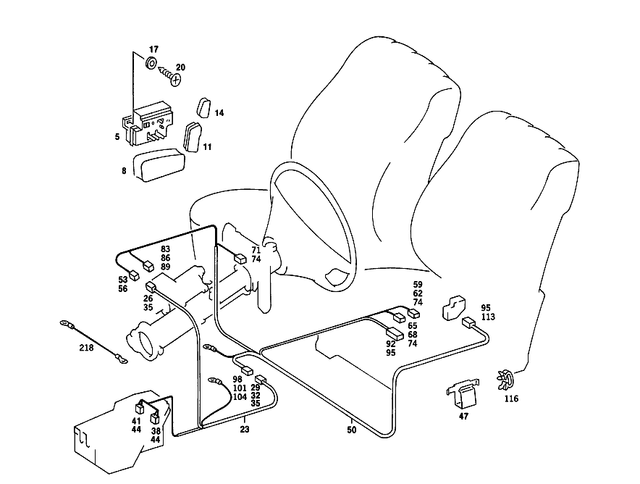

Electric Seat Adjuster for 1990 Mercedes-Benz 560SEL
No.
Part # / Description / Price
5
Switch
Mercedes-Benz
Mercedes-Benz Electric seat adjuster. Left front door. For seat & backrest adjusters,left. With programming.
11
Actuation Button Mercedes-Benz
Mercedes-Benz On left switch. Used for front seat backrest. Left backrest adjuster actuation.
11
Actuation Button Mercedes-Benz
$9.00
Mercedes-Benz On right switch. Used for front seat backrest. Right backrest adjuster actuation.
23
Electrical Wiring Harness Mercedes-Benz
Mercedes-Benz Seat adjuster feed-in,used with memory. With,or less,jacket tube adjuster.
32
Housing Upper Part Mercedes-Benz
$3.20
Mercedes-Benz To 009 545 78 28. To 009 545 80 28. Pin bushing housing 6-polig. To 006 545 08 28. To 006 545 78 28 (asr). 6-pole. To 006 545 80 28,123 545 06 28. (plug upper part).
41
Receptacle Housing Mercedes-Benz
Mercedes-Benz Fuse box "i". 2-pin. Central electrical system, bipolar i. 2-pin. Fuse box g. 2-pin.
47
Clamp Mercedes-Benz
Mercedes-Benz Belt lock to seat rail. Cable harness to roof rail. Electric cable to bracket. At bracket. Blower regulator plug to air conditioner case. Cross member below front seat. Electric cable to rear lid. Test plug. Rear lid lock.
56
Contact Socket Mercedes-Benz
$2.90
Mercedes-Benz 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
62
Cap Mercedes-Benz
$5.00
Mercedes-Benz Back-up lamp cable. To 007 545 00 28, 015 545 49 28. To 006 545 78 28. Fuel gauge sender unit. 4-pole to 015 545 49 28. Quadruple to 009 545 52 28. To 015 545 49 2,. Turn signal and side marker lamps left. To 009 545 52 28 (asd).
83
Adapter Mercedes-Benz
Mercedes-Benz From cable harness plug-connection to tail lamp plug-connection. Seat adjuster feed-in plug-adapter. 6-pole.
83
Receptacle Housing Mercedes-Benz
Mercedes-Benz Seat adjustment control unit. Jacket tube adjuster control unit. Fore-and-aft adjustment.
92
Receptacle Housing Mercedes-Benz
Mercedes-Benz Driver's/co-driver's air bag control unit. Control unit. 16-pole. Lamp control device,16-pole. Seat adjustment control unit.
95
Contact Socket Mercedes-Benz
$2.70
Mercedes-Benz 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
104
Contact Pin Mercedes-Benz
$2.40
Mercedes-Benz 4.0 MM. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 4.0Release tool: W220 589 01 99 52. TO 009 545 53 28/56 28. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: R ...
104
Receptacle Mercedes-Benz
Mercedes-Benz To 000 821 24 25. To 012 545 46 28. 0.75mm2. To 000 821 19 26. 0,75 mm2. 4 mm (to 013 545 89 28). 4.0 mm.
113
Receptacle Housing Mercedes-Benz
$7.75
Mercedes-Benz Backrest-rake/seat-height switch,rear. Electr.seat adjust.switch.
113
Receptacle Housing Mercedes-Benz
Mercedes-Benz Fore-&-aft/seat-height adjustment switch. Electr.seat adjust.switch.
125
Wiper Arm Nut Mercedes-Benz
$3.40
Mercedes-Benz Hexagon Nut
Master cylinder to brake booster. Rear bumper to rear body panel cross member. Electric cable to alternator. Pedal assembly to fire wall. Front bumper to cross member. Armrest to backrest. Bracket to bumper. Left stiffening to right stiffening. On front door,bottom.
125
Hexagon Nut Mercedes-Benz
Mercedes-Benz Nut
Engine to bracket. Rail to fabric retaining rail. Pocket to door lining.
128
Serrated Lock Washer Mercedes-Benz
Mercedes-Benz GEARING TO SEAT HEIGHT ADJUSTMENT
Diameter: 6,4mm
Inside diameter: 6,4mm
Outside diameter: 11mm
Material thickness: 0,7mm.
131
Screw Mercedes-Benz
Mercedes-Benz Electric motor to guide rail. Guide rail to seat framework m5 x 10. Motor to seat height adjustment. Hinge to fabric retaining rail.
131
Screw Mercedes-Benz
$7.25
Mercedes-Benz Gearing to seat height adjustment. Tunnel,front floor m8x20. Tunnel striker plate to tunnel.
134
Retaining Washer Mercedes-Benz
$1.70
Mercedes-Benz FLEXIBLE SHAFT TO ENGINE AND TO TRANSMISSION
Diameter: 9mm
Inside diameter: 10mm
Outside diameter: 18,8mm
Material thickness: 1,1mm. SHAFT TO MOTOR
Diameter: 9mm
Inside diameter: 10mm
Outside diameter: 18,8mm
Material thickness: 1,1mm. BACKREST TO SEAT FRAME
Diameter: 9mm
Inside diameter: 10mm
Outside diameter: 18,8mm
Material thickness: 1,1mm.
140
Electric Motor Mercedes-Benz
Mercedes-Benz Seat height adjustmt.,front;with programing & electr.adjustable steerg. Column. With programming. Seat height adjustment,front lenksaeulenverstellung.
143
Electric Motor Mercedes-Benz
Mercedes-Benz Seat height adjustmt.,rear. With programming & electr.adjust.steerg.column.
146
Electric Motor Mercedes-Benz
Mercedes-Benz Fore & aft adjustmt.. With programming & electr. Adjustable steering column. Fore-and-aft adjustment lenksaeulenverstellung.
146
146
Electric Motor Mercedes-Benz
Mercedes-Benz Fore-and-aft adjustment. Fore & aft adjustmt.. With programming & electr. Adjustable steering column.
152
Receptacle Housing Mercedes-Benz
Mercedes-Benz Fore & aft adjustmt.. With programming & electr. Adjustable steering column. Seat fore and aft adjustment motor.
155
Receptacle Housing Mercedes-Benz
Mercedes-Benz With programming. Seat height adjustmt.,front;with programing & electr.adjustable steerg. Column. Seat height adjustment motor,front.
158
Receptacle Housing Mercedes-Benz
Mercedes-Benz Seat height adjustmt.,rear. Seat height adjustment,rear. With programming. 5-pin. Height adjustment motor,rear. 5-pin.
161
176
Control Unit Mercedes-Benz
Mercedes-Benz Seat height adjustmt.;with programming less electrically adjust.steerg.column. Left seat height adjustment.
179
Grommet Mercedes-Benz
Mercedes-Benz At contact rail. Control unit to seat height adjustment. Contact plate. Contact rail and control unit.
197
Receptacle Housing Mercedes-Benz
Mercedes-Benz Backrest adjustment. With programming. 6-pole. Seat adjustment control unit 6-polig. Backrest adjuster,left.
200
Bracket Mercedes-Benz
Mercedes-Benz Electric motor to backrest frame mittensitz. Electric motor to central seat backrest frame.
206
215
Screw Mercedes-Benz
Mercedes-Benz Horn to partition panel,right front. Headrest adjustment electric motor. 5-pole. Electric motor to backrest frame. Electric motor,left,4-pole.
227
Rocker Switch Mercedes-Benz
Mercedes-Benz Electric single rear seat adjustment, left. Electric window regulator,central console.
233
Coupling, Mechanical Mercedes-Benz
$4.90
Mercedes-Benz Compressor switch. Electric window regulator switch. Lower part. Seat heater switch. 6-pole. Circulating air switch. 4-pole. Level switch. 7-pole.
242
Cap Mercedes-Benz
Mercedes-Benz Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
245
Contact Socket Mercedes-Benz
$3.40
Mercedes-Benz 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
251
Insulating Sleeve Mercedes-Benz
Mercedes-Benz To 000 546 83 40. To 000 546 79 40. To 000 546 583 40. Charge control. Electric cable to pressure switch. Low pressure switch.
272
Tapping Screw Mercedes-Benz
$2.50
Mercedes-Benz DOOR TRIM MOUNTING LEFT. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. MOUNTING OF CARRIER. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. Window divider mount, left. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. ANTENNA SPLITTER. 4.2 X 9.5 MMDi ...
275
Clamp Mercedes-Benz
Mercedes-Benz Speed sensor to rear axle. Cable harness to tail central piece. Tube to rear pillar. Electric cable to bracket. Main cable harness to fire wall. Line fastening, left. Kick-down switch cable to toeboard. Loudspeaker. Tail lamp cable to tail central part.
278
Clamp Mercedes-Benz
Mercedes-Benz Electric cable to rear panel. Sender unit cable to rear panel. Brake lining wear indicator cable to rear axle. Electric cables to main floor. Cable harness mounting. Safety belt branch-off to cross member. Wire, lock switch. Front seat vacuum element. Electric cable to side member.
281
Cover Mercedes-Benz
Mercedes-Benz Front panel pillar,bottom right. Cable covering to legroom side member. Rear floor,rear;between run and seat framework.
284
290
Screw Mercedes-Benz
Mercedes-Benz M6x14-10.9v. Engine to bracket. Stay to fire wall. Rear backrest to wheelhouse panel. Folding armrest. Electric motor to window regulator.
No.
Part # / Description / Price
68
Cap Mercedes-Benz
Mercedes-Benz To 006 545 81 28,009 545 53 28. Electrical plug-in jumper for sliding roof motor to a 009 545 53 28.
86
Receptacle Housing Mercedes-Benz
Mercedes-Benz Burglary alarm system control unit. Automatic air conditioner control unit ;14-pole. Seat adjustment control unit. Seat heater relay. 14-pole. Seat heating control unit. Control unit. 14-pole tempomat.
116
131
Screw Mercedes-Benz
Mercedes-Benz Electric motor to guide rail. Guide rail to seat framework m5 x 10. Motor to seat height adjustment. Hinge to fabric retaining rail.
No.
Part # / Description / Price
95
Contact Socket Mercedes-Benz
$2.70
Mercedes-Benz Receptacle
2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
