Closed Fuel-Evaporation-Control System for 2006 Mercedes-Benz C230
No.
Part # / Description / Price
20

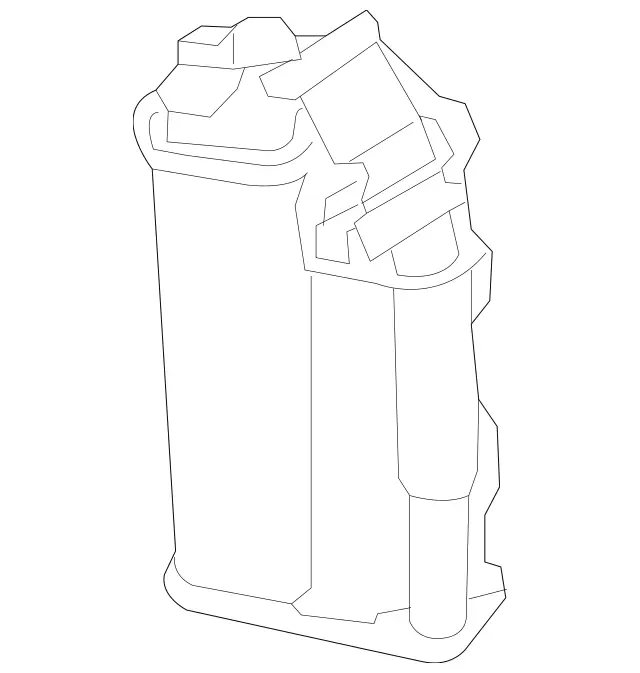

Activated Charcoal Filter
Mercedes-Benz
Mercedes-Benz Closed fuel-evaporation-control system. Evaporative emission control system.
20
Activated Charcoal Filter Mercedes-Benz
Mercedes-Benz Evaporative emission control system. Closed fuel-evaporation-control system.
25
Valve Mercedes-Benz
$164.00
Mercedes-Benz Shutoff valve. Shut-off valve. Evaporative emission control system. Activated charcoal filter.
26
Sealing Ring Mercedes-Benz
Mercedes-Benz Activated charcoal filter. Shutoff valve activated-carbon filter. At valve.
28
Wiring Harness Mercedes-Benz
$18.50
Mercedes-Benz Shutoff valve repair solution. Shutoff valve adapter line to a 000 470 71 93. Activated charcoal filter shutoff valve.
30
Hose Mercedes-Benz
Mercedes-Benz Activated charcoal filter for purge line. 370 MM. From activated charcoal filter to regeneration line. 370 mm.
30
Hose Mercedes-Benz
$24.50
Mercedes-Benz Activated charcoal filter for purge line. 15,3X3MM. Hose to valve 55mm. 15,3x3mm. Feed and return lines, breathing 55mm. 15,3x3mm. Return line to fuel filter 200mm. 15,3x3mm. Vent pipe fuel tank to t-fitting or vent valve 50mm. 15,3x3mm. Vent line 45 mm. 15,3x3mm. Purge line to check valve. 15,3x3mm. From activated charcoal filter to regeneration line. 15,3x3mm.
40
Spring Hose Clamp Mercedes-Benz
$6.50
Mercedes-Benz Hose to activated charcoal filter. 27-30 mm. Mount, water drain at top. 27-30 mm. Hose attachment. 27-30 mm. Filler neck to charcoal filter. 27-30 mm. Return. 27-30 mm. Hose to engine. 27-30 mm. Hose to additional water pump. 27-30 mm. To coolant hose. 27-30 mm. From pump to heat exchanger. 27-30 mm. Low temperature pump. 27-30 mm.
60
Vent Tube Mercedes-Benz
Mercedes-Benz Activated charcoal filter to purge valve. From activated charcoal filter to regeneration valve.
80
Purge Valve Mercedes-Benz
Mercedes-Benz Regeneration valve. Evaporative emission control system. In engine compartment.
80
Purge Valve Mercedes-Benz
$85.00
Mercedes-Benz Regeneration valve. Evaporative emission control system. In engine compartment. To engine.
85
Holder Mercedes-Benz
$13.50
Mercedes-Benz PURGE VALVE AT BRACKET
Inside diameter: 33,5mm
Outside diameter: 39,5mm
Material thickness: 3mm.
110
Hose Mercedes-Benz
$12.00
Mercedes-Benz To bleed line. Regeneration line to engine. Between purge line and tube. Regeneration valve. Damper filter to purge valve. Purge valve to connecting point. Purge valve to purge line. Dashpot at purge line.
146
Clamp Mercedes-Benz
$3.50
Mercedes-Benz Fuel filter to act. CARBON FILTER. 13-14/8.2 MMDiameter: 13mmInside diameter: 13,5mmOutside diameter: 15mmMaterial thickness: 0,6mmModel 1: Gelb. BETWEEN ACTIVATED CHARCOAL FILTER AND REGENERATION VALVE. 13-14/8.2 MMDiameter: 13mmInside diameter: 13,5mmOut ...
156
180
Spacer Mercedes-Benz
$2.90
Mercedes-Benz Pressure line and return line. Regeneration line. Breather pipe. Hose attachment.
210
Hose Mercedes-Benz
$32.50
Mercedes-Benz 160 mm. 13.3x3 mm. From fuel filter to feed line. 13.3x3 mm. 300 mm. 13.3x3 mm. 110mm. 13.3x3 mm. Order by the meter. 13.3x3 mm. 250 mm. 13.3x3 mm. From activated charcoal filter to regeneration valve. 13.3x3 mm. 100 mm from fuel return line to fuel tark. 13.3x3 mm.
