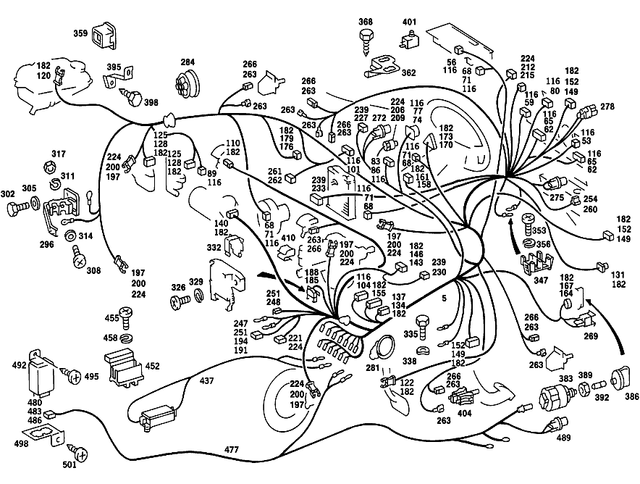

Main Cable Harness for 1986 Mercedes-Benz 560SEL
No.
Part # / Description / Price
53
Receptacle Housing
Mercedes-Benz
Mercedes-Benz Amplifier. 4-pin. Cd changer. 4-pin. Info module asr. 4-pin. Function control 4-matic. 4-pin. Timer,heater. 4-pin. Radio current supply. 4-pin. Additional heater preset time switch. 6-pole. 4-pin. 3-pole. 4-pin.
56
Receptacle Housing Mercedes-Benz
Mercedes-Benz Dome lighting. Dome lamp. Blinker light and speedometer. Time-lag relay.
59
Receptacle Housing Mercedes-Benz
Mercedes-Benz Circulating air switch. 7-pole. 6-pin. Skid threshold switch. 6-pin.
62
Receptacle Housing Mercedes-Benz
Mercedes-Benz Burglary alarm system control unit. Automatic air conditioner control unit ;14-pole. Seat adjustment control unit. Seat heater relay. 14-pole. Seat heating control unit. Control unit. 14-pole tempomat.
68
Housing Lower Part Mercedes-Benz
$3.20
Mercedes-Benz Buzzer contact;2-pole. 2-pin. Central locking system. 2-pin. Evaporator temperature sensor. 2-pin. Solenoid valve,bipolar. 2-pin. Temperature sensor;2-pole. 2-pin. Heating water valve,temperature sensor,electro-magnet valves;bipolar. 2-pin.
71
Coupling, Mechanical Mercedes-Benz
$2.40
Mercedes-Benz To 010 545 10 28. Upper part. To 008 545 37 28. Buzzer contact.
83
Receptacle Housing Mercedes-Benz
Mercedes-Benz Sensor. Instrument cluster. On-board computer keyboard. Final controlling element. 8-pole. Control unit. Belt warning device. Tell-tale lamp.
89
Receptacle Housing Mercedes-Benz
$2.90
Mercedes-Benz Heating water valve. 4-pole. 4-pin. Outside temperature indicator. 4-pin. Cryostat. 4-pin. Tempmatik control box. 4-pin. Speedometer. 4-pin. Quadruple. 4-pin.
92
Coupling, Mechanical Mercedes-Benz
$1.40
Mercedes-Benz Sliding roof switch. 6-pin. Automatic antenna. 6-pin. Tempmatik control box. 6-pole. 6-pin. Mirror adjustment switch. 6-pole. 6-pin. Dome lighting. 6-pin. Temperature selector gear. 5-pole. 6-pin. Electrical antenna,6-pole. 6-pin.
101
104
Receptacle Housing Mercedes-Benz
Mercedes-Benz Driver's/co-driver's air bag control unit. Control unit. 16-pole. Lamp control device,16-pole. Seat adjustment control unit.
107
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Automatic antenna. 4-pin rk2.5. Valve strip. Fourpole. 4-pin rk2.5. Tempmatik control box. 6-pole. 4-pin rk2.5. Inboard feeler blower. 4-pin rk2.5. Electrical antenna,6-pole. 4-pin rk2.5. Ventilation blower. 4-pin rk2.5. Pre-glow time relay. 4-pole. 4-pin rk2.5.
110
Receptacle Housing Mercedes-Benz
Mercedes-Benz Interior lamps. 2-pin. Belt locking retractor. 2-pin. Dome lamp,front. 2-pin. Unipolar. 2-pin. Economy drive switch. 4-pole. 2-pin. Trunk lid. 2-pin. Stop light switch 2 polig. 2-pin. Asd/asr. 2-pin. Thermo-switch heating washer system. 2-pin. Parking brake control. 2-pin.
116
Contact Socket Mercedes-Benz
$2.70
Mercedes-Benz Receptacle
2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
122
Electric Coupling Mercedes-Benz
$3.00
Mercedes-Benz Blinker lamp. 2-pin rk4. Circulation pump m13. 2-pin rk4. Circulation pump 2-pin. 2-pin rk4.
137
Housing Upper Part Mercedes-Benz
$3.20
Mercedes-Benz To 009 545 78 28. To 009 545 80 28. Pin bushing housing 6-polig. To 006 545 08 28. To 006 545 78 28 (asr). 6-pole. To 006 545 80 28,123 545 06 28. (plug upper part).
143
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Hydraulic unit. 12-pin. 10-pole. 12-pin. Test instrument connection. 12-pole. 12-pin. Plug, 12-pin. 12-pin. Switchgear, 12-pole. 12-pin.
152
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz To 006 543 81 28. 8-pole. To 006 545 81 28,009 545 53 28. To 006 545 20 28.
158
Receptacle Housing Mercedes-Benz
Mercedes-Benz Combination switch plug-connection. 14-pin. 14-pole. 14-pin. Module box cable-harness plugconnection. 14-pin.
173
Cap Mercedes-Benz
$4.90
Mercedes-Benz Starting ignition switch. To 009 545 73 28, 011 545 45 28. To 009 545 73 28. 019 545 11 28.
179
Cap Mercedes-Benz
$5.00
Mercedes-Benz Back-up lamp cable. To 007 545 00 28, 015 545 49 28. To 006 545 78 28. Fuel gauge sender unit. 4-pole to 015 545 49 28. Quadruple to 009 545 52 28. To 015 545 49 2,. Turn signal and side marker lamps left. To 009 545 52 28 (asd).
188
Contact Socket Mercedes-Benz
Mercedes-Benz D 4,0mm. 4.0 mm. To 014 545 91 28. To 015 545 56 28,015 545 57 28. 4mm (to 015 545 29 28). 4 mm2.
200
Cap Mercedes-Benz
Mercedes-Benz Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
209
Housing Upper Part Mercedes-Benz
$2.70
Mercedes-Benz To 008 545 20 28,011 545 10 28. Rear fuel pump cable harness plugconnection.
215
218
Coupling, Mechanical Mercedes-Benz
$4.90
Mercedes-Benz Compressor switch. Electric window regulator switch. Lower part. Seat heater switch. 6-pole. Circulating air switch. 4-pole. Level switch. 7-pole.
224
Contact Socket Mercedes-Benz
$3.40
Mercedes-Benz 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
233
Receptacle Housing Mercedes-Benz
Mercedes-Benz Valve strip;8-pole. Right headlamp central electrical system, 8-pole.
239
Contact Socket Mercedes-Benz
$2.90
Mercedes-Benz 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
242
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Plug Socket
Control unit of infrared remote control. 27-pin. Tempmatik control box. 27-pin.
245
Contact Spring Mercedes-Benz
$3.50
Mercedes-Benz Left exit lights. 0.5 mm2 jpt. To 220 545 17 28. 0.5 mm2 jpt. 0,5-1,0mm2. 0.5 mm2 jpt. Radio 0.5 -1.0 mm2. 0.5 mm2 jpt.
248
254
Receptacle Housing Mercedes-Benz
$5.25
Mercedes-Benz Plug socket 12v. Pass. Left rear reading lamp. 2-pin ff6.3model 1: ffmodel 2: 6.3slots: 2. Additional heater control unit. 2-pin ff6.3model 1: ffmodel 2: 6.3slots: 2. Radio connection x58/2. 2-pin ff6.3model 1: ffmodel 2: 6.3slots: 2. Front interior socket ...
260
Flat Pin Bushing Mercedes-Benz
Mercedes-Benz TO 008 545 34 28/ 35 28/ 36 28. 0.5 MM2 FF6.3
Leitungsquerschnitt Min/Max: 0,5mm2
Oberflächenschutz PINs: Ag
Model 1: FF
Model 2: 6.3.
260
Receptacle Mercedes-Benz
$2.70
Mercedes-Benz Tin-plated. 1.5-2.5 MM2 FF6.3Leitungsquerschnitt Min/Max: 1,0-2,5mm2Oberflächenschutz PINs: SnELA: -Model 1: FFModel 2: 6.3. TO 001 545 10 28,012 545 31 28. 1.5-2.5 MM2 FF6.3Leitungsquerschnitt Min/Max: 1,0-2,5mm2Oberflächenschutz PINs: SnELA: -Model 1: ...
269
Socket Mercedes-Benz
Mercedes-Benz Air nozzle lighting. Lighting of rotary light switch escutcheon. Cigar lighter. Ashtray lighting. Lighting of gear indicator. Heating control lighting.
272
Socket Mercedes-Benz
Mercedes-Benz Lighting of gear indicator. Lamp control. Tell-tale lamp airbag. Windshield-washer-fluid control. Shift gate illumination. Bipolar. Tell-tale lamp abs/asr. Pre-glow indicator. Tell-tale lamp 4-matic. (oxygen sensor exchange indicator).
278
Socket Mercedes-Benz
Mercedes-Benz Heating control lighting. Lighting of operating unit. Blower switch and heating control. Bulb.
281
Grommet Mercedes-Benz
Mercedes-Benz Brake fluid control branch-off. Electric cable thru fuse box and relay case. Electric cable thru fire wall. Right. Electric cable thru tunnel.
299
Holder Mercedes-Benz
Mercedes-Benz Ignition lock cable harness. Electric cable to instrument panel. Engine cable harness to battery frame. Line attachment. Vacuum pump. Cable harness to left wheel arch.
305
Window Mercedes-Benz
$5.50
Mercedes-Benz Lateral guide to rear end floor. Bumper to cross member. Cable connector to foot operated parking brake. Bracket to heater case. Mud apron. Guide to angle. Bumper to body amg. Engine hood lower catch to cross connection. On rear end floor,lateral left and right.
305
Washer Mercedes-Benz
Mercedes-Benz Instrument panel upper part to bracket at cross member. Lower part of engine hood catch to front panel.
308
323
Tapping Screw Mercedes-Benz
$2.00
Mercedes-Benz Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
329
Spring Lock Washer Mercedes-Benz
$1.40
Mercedes-Benz Cables to cable connector. At front center stiffening. Blinker & tempomat switches to steering column jacket tube. Cable to resistor. Main cable harness to radiator baffle, right. Starting cable to cable connector.
335
Hexagon Head Bolt Mercedes-Benz
$2.90
Mercedes-Benz Screw
Engine hood upper catch to engine hood. Flap to hinge m 6x10.
344
Screw Mercedes-Benz
Mercedes-Benz Electric cable to central electric system terminal 30. Cable harness to cable connector. Cables to cable connector.
371
Holder Mercedes-Benz
Mercedes-Benz Cable harness to central pillar,bottom right. Cable harness to front panel,lateral inside left. Plug connection to tail lamp cable harness. Declutching-start/back-up-light switch plug connection. Below rear seat. Main cable harness plug connection. 12-pole coupler to front panel pillar. Belt locking retractor plug-connection. Fuel pump relay.
389
Nut Mercedes-Benz
$3.70
Mercedes-Benz Light switch to instrument panel. Light rotary switch. Operating unit. Central covering to heater case. Air-conditioner temperature/vacuum switch to covering in case.
392
404
Switch Mercedes-Benz
$11.50
Mercedes-Benz Foot-operated parking brake. Interior lamp. With rest contact,for engine compartment and instrument panel. Parking brake control. Door contact switch. Hand brake. Burglary alarm system (edw). Electric window regulator to front panel left pillar.
410
Clamp Mercedes-Benz
Mercedes-Benz Main cable harness branch-off towards washer nozzle heating to engine hood. 18 x 13 mm. Electric cable to rear lid left hinge. 18 x 13 mm. Tail lamp cable harness to rear lid. 18 x 13 mm. Branch-off to luggage compartment to hinge. 18 x 13 mm. Automatic transmission cable harness. 18 x 13 mm.
476
Bulb Mercedes-Benz
$4.60
Mercedes-Benz Charge control lamp used for second alternator w5/1,2-12v 1,2w. 12v-1.2wmodel 1: w5/1,2wvolt: 12vwatt: 1,2w. Cigar lighter. 12v-1.2wmodel 1: w5/1,2wvolt: 12vwatt: 1,2w. Three-hole mounting w5/1,2-12v 1,2w. 12v-1.2wmodel 1: w5/1,2wvolt: 12vwatt: 1,2w. J-12V ...
No.
Part # / Description / Price
140
Receptacle Housing Mercedes-Benz
$8.75
Mercedes-Benz Automatic transmission shift-pointincrease relay. 6-pin. Relay for "locking completed" feedback. 6-pin. Engine shut-off relay. 6-pin. Intake manifold heating relay. 6-pole. 6-pin. Relay. 6-pole to 126 820 40 17,56 15. 6-pin. Air blow-in relay. 6-pin. Seat adjuster relay. 6-pin.
206
221
Receptacle Housing Mercedes-Benz
Mercedes-Benz Diode case to fuse box. 2-pin. Comfort switching. 2-pin. Comfort/sport change-over trimmer plug. 2-pin. Trimmer plug ezl. 2-pin. Diodes. 2-pin. Trimmer plug to 007 545 75 28. 2-pin.
247
Receptacle Housing Mercedes-Benz
Mercedes-Benz Fuse box "i". 2-pin. Central electrical system, bipolar i. 2-pin. Fuse box g. 2-pin.
No.
Part # / Description / Price
410
Clamp Mercedes-Benz
Mercedes-Benz Clip
Main cable harness branch-off towards washer nozzle heating to engine hood. 18 x 13 mm. Electric cable to rear lid left hinge. 18 x 13 mm. Tail lamp cable harness to rear lid. 18 x 13 mm. Branch-off to luggage compartment to hinge. 18 x 13 mm. Automatic transmission cable harness. 18 x 13 mm.
