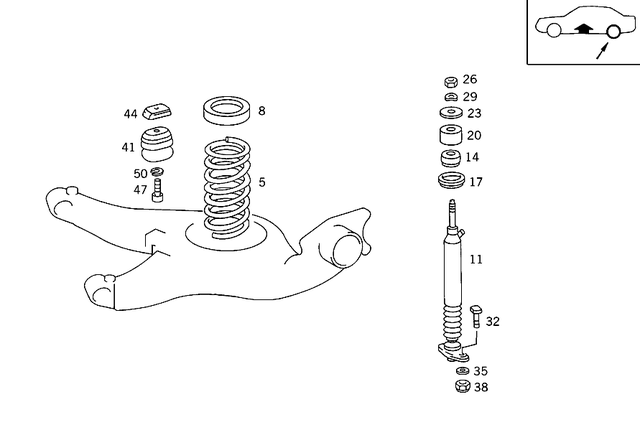

Rear Springs and Suspension Used with Self-Levelling Device for 1986 Mercedes-Benz 560SEL
No.
Part # / Description / Price
8
Rubber Bushing
Mercedes-Benz
$32.00
Mercedes-Benz As required. Number of burls: 1 (9.5 mm). With spring color code in red 9.5 mm;1185-1220 kg.
8
Rubber Bushing Mercedes-Benz
$29.50
Mercedes-Benz As required. Number of burls: 3 (19 mm). With spring color code in red 19 mm;1250-1286 kg,1327-1359 kg 1496-1540 kg.
8
Rubber Bushing Mercedes-Benz
$63.00
Mercedes-Benz As required. Number of burls: 2 (14 mm). With spring color code in red 14 mm;1220-1250 kg,1286-1327 kg.
23
Window Mercedes-Benz
$3.70
Mercedes-Benz Washer
Shock absorber to frame. Bumper to body. Hydropneumatic spring leg to frame. Shock absorber to rear axle.
26
Hexagon Nut Mercedes-Benz
$3.70
Mercedes-Benz M10X1
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Front shock absorbers to frame. Bumper to body. Shock absorber to frame m 10x1. Hydropneumatic spring leg to frame m 10x1.
38
Nut Mercedes-Benz
Mercedes-Benz BRAKE BRACING TO CONTROL ARMDiameter: 10mmStrength / hardness class: 8Thread code letter: MThread pitch: 1,5mmWidth across flats: 17mm. STOP TO REAR AXLEDiameter: 10mmStrength / hardness class: 8Thread code letter: MThread pitch: 1,5mmWidth across flats: 1 ...
44
47
Cap Screw Mercedes-Benz
$4.40
Mercedes-Benz Stop buffer to frame. M8X20
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Pressure line to rotary actuator. Bracket to fire wall. Bracket on spring link m 8x20. Bracket to support. Line to torsion bar bearing, front left. Clamp to oil pan. Bracket on spring link m8 x 20. Plate to spring control arm.
47
Cap Screw Mercedes-Benz
$6.00
Mercedes-Benz M8X30-10.9
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Steering coupling to steering shaft. Line to compressor. Stop buffer to frame. Plug connection, separation point.
No.
Part # / Description / Price
41
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz M10x25. Shock absorber to rear axle. Stiffening support to body side member. Reinforcement angle to side member. Intermediate bearing to frame floor unit. Hydropneumatic spring leg to rear axle. Protective plate to protective plate.
