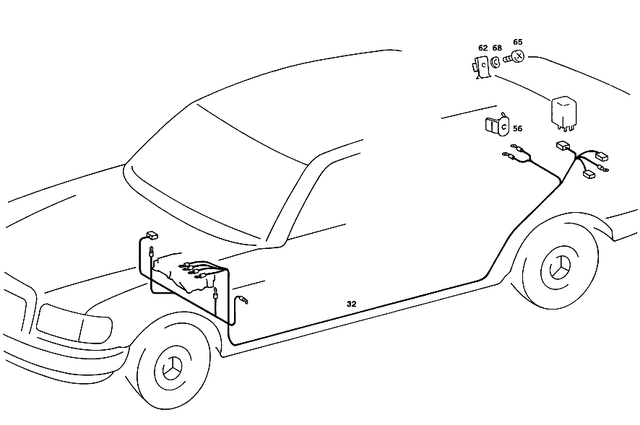

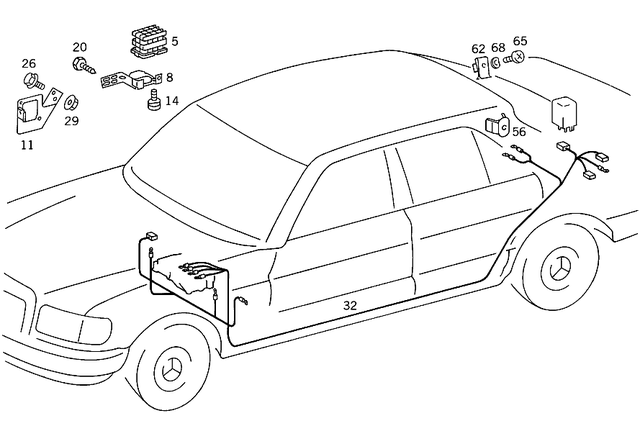

Cable Coverg. , Prot. Hoses, Electr. Parts for Blower Motor & Heated Rear Pane for 1986 Mercedes-Benz 560SEL
No.
Part # / Description / Price
14
Hexalobular Screw
Mercedes-Benz
$1.40
Mercedes-Benz Bolt and Washer Assembly
Fastening for lining. M4 x 8 mm. Shell to reservoir. To mounting. To reinforcement.
20
Tapping Screw Mercedes-Benz
$2.00
Mercedes-Benz Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
29
Nut Mercedes-Benz
Mercedes-Benz Condenser to mounting plate. Resistor to fire wall. Amg vehicles. Bracket to right wheelhouse. Loudspeaker to bracket. Sliding/lifting roof plate to lifting angle bracket. Amplifier to bracket. Tail lamp to rear fender and to lower rear body panel additional stop light. Tail light left.
56
Line Connector Mercedes-Benz
Mercedes-Benz Main cable harness to heating. Heated rear window pane cable. Windshield. Rear window pane connecting cable to cable harness in rear panel door. Terminal "58 d". Lighting of heater case operating unit. Heater case,left. Terminal "58d".
62
Nut Holder Mercedes-Benz
$10.50
Mercedes-Benz Nut Retainer
Tail lamp ground cable to wheel arch panel. Ground cable to rear pillar. Cable connector to rear pillar.
77
Cover Mercedes-Benz
Mercedes-Benz Front panel pillar,bottom right. Cable covering to legroom side member. Rear floor,rear;between run and seat framework.
143
Nut Mercedes-Benz
$1.00
Mercedes-Benz Insulation to fire wall,inside. Garnish moulding to covering. Mounting plate to fire wall. Footrest to fire wall. Ledge to covering. Covering below instrument panel,left. Covering to fire wall insulation. Panelling to front panel pillar. At bracket. Center panelling at door trim panel.
No.
Part # / Description / Price
38
Housing Upper Part Mercedes-Benz
$3.20
Mercedes-Benz To 009 545 78 28. To 009 545 80 28. Pin bushing housing 6-polig. To 006 545 08 28. To 006 545 78 28 (asr). 6-pole. To 006 545 80 28,123 545 06 28. (plug upper part).
47
50
Contact Socket Mercedes-Benz
$3.40
Mercedes-Benz 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
116
Fastening Clamp Mercedes-Benz
Mercedes-Benz Cable harness to side member. Electric cables to main floor. Tail lamp cable harness to tunnel. Cable harness to plate.
122
Tapping Screw Mercedes-Benz
$2.50
Mercedes-Benz Bolt and Washer Assembly
DOOR TRIM MOUNTING LEFT. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. MOUNTING OF CARRIER. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. Window divider mount, left. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. ANTENNA SPLITTER. 4.2 X 9.5 MMDi ...
122
131
Tapping Screw Mercedes-Benz
Mercedes-Benz Covering to outside central piece. Cable laying at floor. Hinge to cover. Panelling to roof rail.
No.
Part # / Description / Price
65
Hexalobular Screw Mercedes-Benz
$1.40
Mercedes-Benz Screw
Fastening for lining. M4 x 8 mm. Shell to reservoir. To mounting. To reinforcement.
