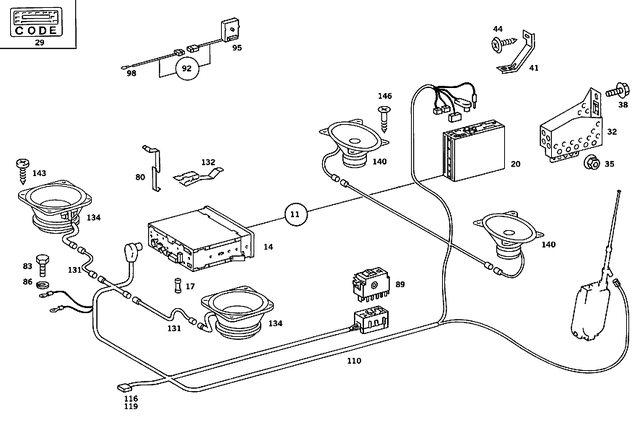

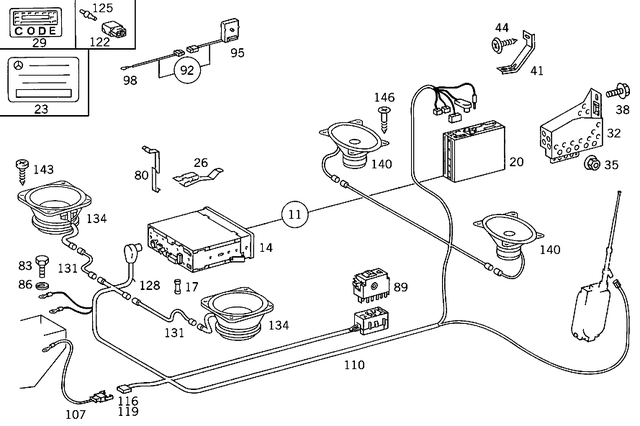

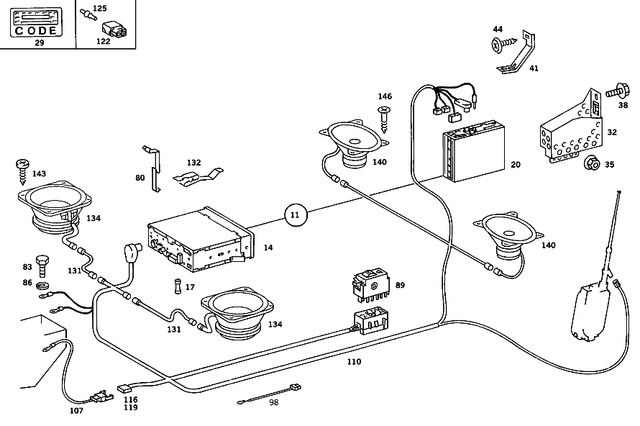

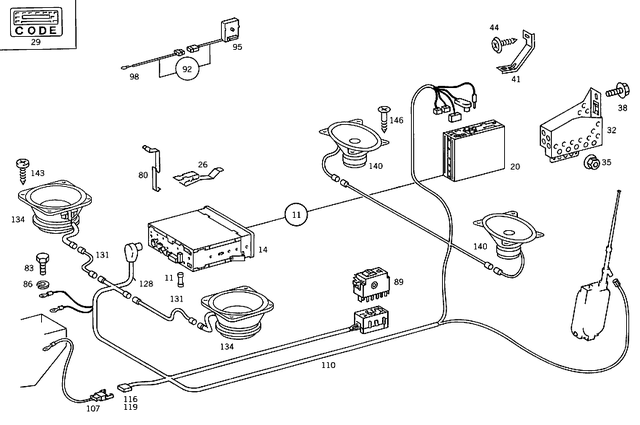

Radio Set, Radio Accessories, Antenna for 1986 Mercedes-Benz 560SEL
No.
Part # / Description / Price
44
Bolt And Washer Assembly
Mercedes-Benz
Mercedes-Benz Bracket to apparatus plate. Bracket to rear pillar. Temperature sensor to front bumper. Fuse box to bracket. Bracket mounting.
83
Hexagon Head Bolt Mercedes-Benz
$3.50
Mercedes-Benz Amplifier at c-pillar. Amplifier to bracket. Reinforcem. At bracket, left.
107
125
Contact Socket Mercedes-Benz
$2.70
Mercedes-Benz 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
152
Screw Mercedes-Benz
$2.90
Mercedes-Benz Bolt and Washer Assembly
Bracket to whelhouse flange. Bracket to wheelhouse. Ground cable to rear pillar. Bracket to antenna.
158
Nut Holder Mercedes-Benz
$10.50
Mercedes-Benz Nut Retainer
Tail lamp ground cable to wheel arch panel. Ground cable to rear pillar. Cable connector to rear pillar.
164
Spring Lock Washer Mercedes-Benz
$1.40
Mercedes-Benz Cables to cable connector. At front center stiffening. Blinker & tempomat switches to steering column jacket tube. Cable to resistor. Main cable harness to radiator baffle, right. Starting cable to cable connector.
200
Hexalobular Screw Mercedes-Benz
$1.40
Mercedes-Benz Fastening for lining. M4 x 8 mm. Shell to reservoir. To mounting. To reinforcement.
203
Tooth Lock Washer Mercedes-Benz
$2.20
Mercedes-Benz M4. Insert to sliding roof plate,rear. Backrest spar covering. Lines to rear wheelhouse,inside. Rail to backrest frame, bottom. Electrical line at fuel pump, positive at connector a 4,3. Relay to bracket. Cable to fuel pump. Mounting rail to door framework.
209
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Additional blower to front central stiffening. Bracket to auxiliary fan.
Not For Sale
No.
Part # / Description / Price
14
215
227
Tapping Screw Mercedes-Benz
$2.00
Mercedes-Benz Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
257
278
287
Nut Mercedes-Benz
Mercedes-Benz Condenser to mounting plate. Resistor to fire wall. Amg vehicles. Bracket to right wheelhouse. Loudspeaker to bracket. Sliding/lifting roof plate to lifting angle bracket. Amplifier to bracket. Tail lamp to rear fender and to lower rear body panel additional stop light. Tail light left.
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
83
Hexagon Head Bolt Mercedes-Benz
$3.50
Mercedes-Benz Screw
Amplifier at c-pillar. Amplifier to bracket. Reinforcem. At bracket, left.
142
200
Hexalobular Screw Mercedes-Benz
$1.40
Mercedes-Benz Screw
Fastening for lining. M4 x 8 mm. Shell to reservoir. To mounting. To reinforcement.
209
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Screw
Additional blower to front central stiffening. Bracket to auxiliary fan.
Not For Sale
233
Clamp Mercedes-Benz
Mercedes-Benz Mounting partition panel. Cable harness mounting. Control unit fixture. Bracket.
No.
Part # / Description / Price
