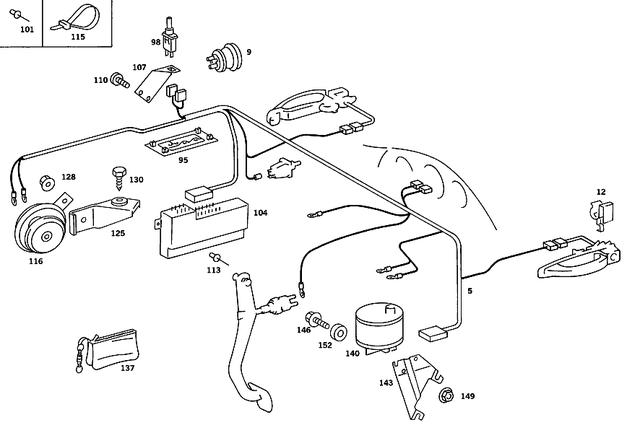

Antitheft Alarm System for 1986 Mercedes-Benz 560SEL
No.
Part # / Description / Price
9
Rubber Grommet
Mercedes-Benz
MSRP $10.00
$10.00
Mercedes-Benz Electric cable thru fire wall. Wheelhouse, front right. At line to vacuum supply tank. Electric cable thru partition panel.
98
Switch Mercedes-Benz
MSRP $59.00
$59.00
Mercedes-Benz Luggage compartment lamp. Engine compartment. Glove compartment. On right hinge,rear lid,and damper strut console bracket. Engine hood contact to front wheelhouse. Door contact. Foot operated parking brake. Burglary alarm system (edw). Engine hood contact switch.
98
Switch Mercedes-Benz
MSRP $11.50
$11.50
Mercedes-Benz Foot-operated parking brake. Interior lamp. With rest contact,for engine compartment and instrument panel. Parking brake control. Door contact switch. Hand brake. Burglary alarm system (edw). Electric window regulator to front panel left pillar.
110
Screw Mercedes-Benz
MSRP $2.20
$2.20
Mercedes-Benz Bracket to partition. Bearing clamp. Bracket to left and right front door panelling.
113
Expansion Rivet Mercedes-Benz
MSRP $1.40
$1.40
Mercedes-Benz Covering to body. Control unit to the right of legroom. Covering to outside central piece. Starting cable to unit partition panel. 5 mm. Covering to cross member. For partition plate at wheel arch pan and reinforcement plate. See group 69,fig.no.: 53 see group 69,fig.no.: 56. Ashtray to tray. Switch to partition panel.
122
Spring Lock Washer Mercedes-Benz
MSRP $1.40
$1.40
Mercedes-Benz Cables to cable connector. At front center stiffening. Blinker & tempomat switches to steering column jacket tube. Cable to resistor. Main cable harness to radiator baffle, right. Starting cable to cable connector.
128
Nut Mercedes-Benz
Mercedes-Benz M8-10. Wiper linkage to motor drive rod. To bearing m8. Bracket to wheelhouse. Horn to stiffening. Bracket to spring dome. Triple gearing to height adjustment.
130
Tapping Screw Mercedes-Benz
MSRP $2.00
$2.00
Mercedes-Benz Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
149
Hexagon Nut Mercedes-Benz
MSRP $3.40
$3.40
Mercedes-Benz Nut
M6. Bracket to water tank. Mounting parts. Control unit. Bracket mounting. Brake booster assembly to asr bracket. Fuel lines to cowl. Transistorized ignition switchgear to wheelhouse panel. Roller blind to rear panel covering, top.
152
Seal Mercedes-Benz
MSRP $13.00
$13.00
Mercedes-Benz (thermo-valve),windshield heater. At central inside part. Air-blast nozzle breather fitting. Alarm unit to bracket.
