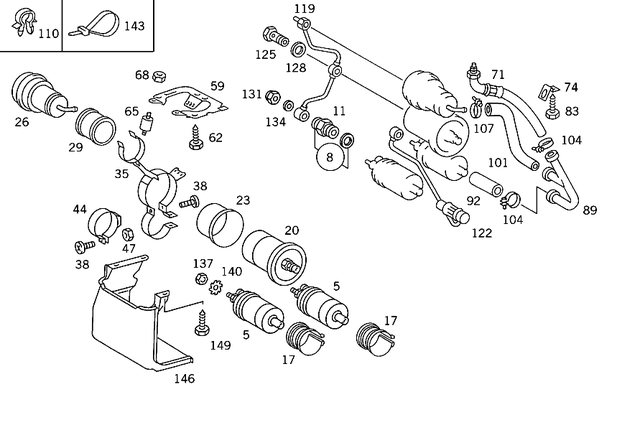

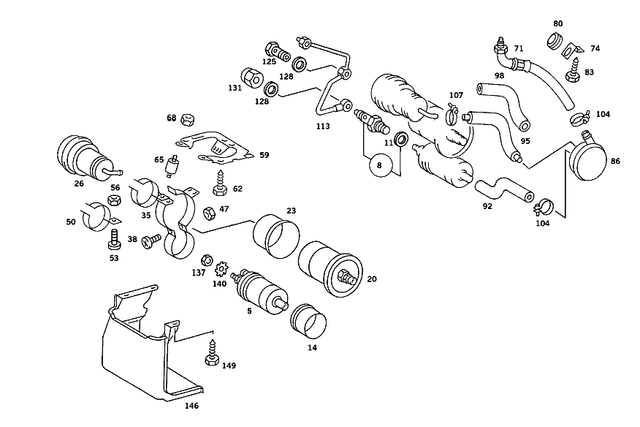

Fuel Pump Package for 1986 Mercedes-Benz 560SEL
No.
Part # / Description / Price
5
Fuel Pump
Mercedes-Benz
Mercedes-Benz
Gefahrgutkennzeichen: 9.4 Miscellaneous dangerous goods (Dangerous goods in apparatus).
11
Sealing Ring Mercedes-Benz
$1.50
Mercedes-Benz FITTING. 10 X15-CU
Strength / hardness class: CU
Inside diameter: 10mm
Outside diameter: 15mm
Material thickness: 1mm.
38
Hexalobular Screw Mercedes-Benz
$3.00
Mercedes-Benz Screw
Door separation point coupler to a-pillar. M5X25
Diameter: 5mm
Strength / hardness class: 4.8
Thread code letter: M
Thread pitch: 1mm. Pump,filter & fuel accumulator to bracket. At bracket. Cover to housing with tray. Connector to instrument panel reinforcement.
38
Screw Mercedes-Benz
$4.40
Mercedes-Benz Pump,filter & fuel accumulator to bracket. M5 x40. Motor to seat height adjustment with programming. Pump and filter to bracket.
62
Tapping Screw Mercedes-Benz
$1.70
Mercedes-Benz Front fender to bumper bracket. Front fender partition panel to wheelhouse. Front fender to wheelhouse,bottom front. Bracket to frame. 6,3 x 13. Bracket to cowl. As required. 6.3x13. Bracket to wheel arch panel.
92
Hose Mercedes-Benz
$67.00
Mercedes-Benz Reservoir to fuel tank 190 mm. (protective hose) 220 mm. Activated charcoal filter 45 mm. From fuel tank to fuel pump 115 mm.
104
Clamp Mercedes-Benz
Mercedes-Benz Between control valve and heat exchanger 21/9. From fuel tank to fuel pump 12 x 9 mm. Heat exchanger,left 21/9. From damper cage to fuel feed pump. From fuel tank to damper cage.
107
Clamp Mercedes-Benz
Mercedes-Benz HOSE TO ACCUMULATOR & DAMPER CAGEDiameter: 11mmMaterial thickness: 0,4mmWidth across flats: SW7. CONNECTING PIPE ON BRACKETDiameter: 11mmMaterial thickness: 0,4mmWidth across flats: SW7. FROM ACCUMULATOR TO DAMPER CAGE & VALVEDiameter: 11mmMaterial thickne ...
125
Banjo Bolt Mercedes-Benz
$38.50
Mercedes-Benz BETWEEN VALVE,TRANSFER CASE AND CYLINDER COVER,VACUUMDiameter: 12mmStrength / hardness class: STThread code letter: MThread pitch: 1,5mmWidth across flats: 17mm. LONGITUDINAL LOCK BREATHERDiameter: 12mmStrength / hardness class: STThread code letter: MThre ...
128
Sealing Ring Mercedes-Benz
$4.40
Mercedes-Benz HOSE TO SLAVE CYLINDERStrength / hardness class: CUInside diameter: 12mmOutside diameter: 17mmMaterial thickness: 1,5mm. LONGITUDINAL LOCK BREATHER 12X17Strength / hardness class: CUInside diameter: 12mmOutside diameter: 17mmMaterial thickness: 1,5mm. BETW ...
140
Tooth Lock Washer Mercedes-Benz
$2.20
Mercedes-Benz M4. Insert to sliding roof plate,rear. Backrest spar covering. Lines to rear wheelhouse,inside. Rail to backrest frame, bottom. Electrical line at fuel pump, positive at connector a 4,3. Relay to bracket. Cable to fuel pump. Mounting rail to door framework.
No.
Part # / Description / Price
104
Hose Clamp W Worm Drive Mercedes-Benz
$7.00
Mercedes-Benz Clamp
Cooling water hose to radiator. 23-30 mm. Fuel hose. 23-30 mm. From oil tank to pump. 23-30 mm. Hose to water valve 20-30 mm. 23-30 mm. Filling hose to radiator. 23-30 mm. From engine to heat exchanger l 23-30. 23-30 mm.
