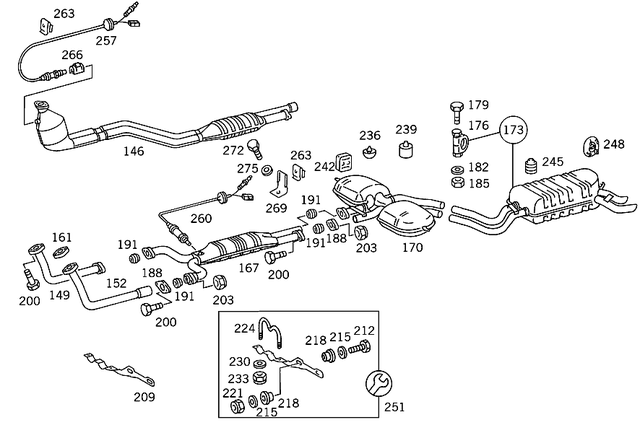

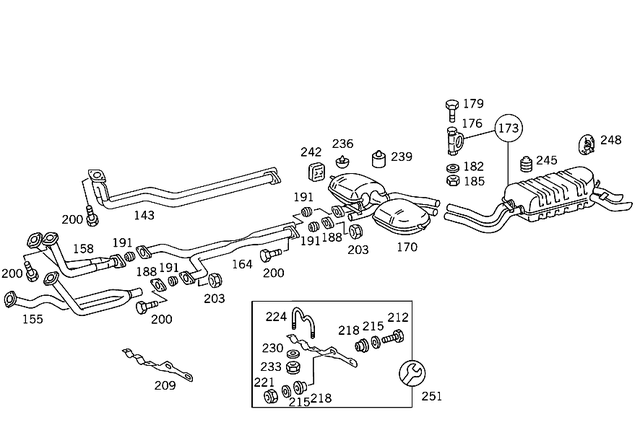

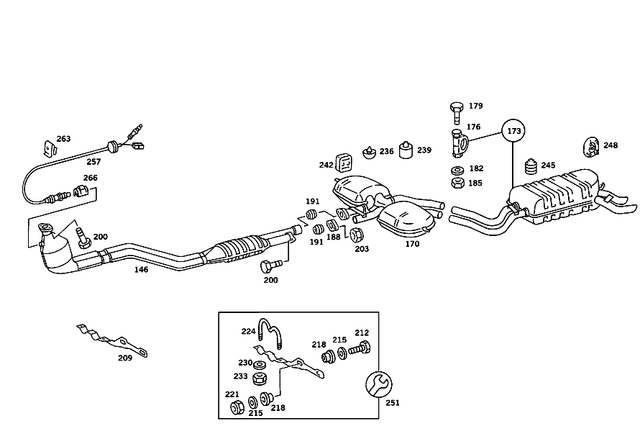

Exhaust System Used on Eight-Cylinder Gasoline Vehicles for 1986 Mercedes-Benz 560SEL
No.
Part # / Description / Price
173
176
Clamp
Mercedes-Benz
$6.00
Mercedes-Benz Front exhaust pipe to central exhaust pipe. Central rear exhaust pipe to rear exhaust pipe. Front exhaust pipe to rear exhaust pipe.
179
Hexagon Head Bolt Mercedes-Benz
$4.50
Mercedes-Benz M8X60
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Bracket to exhaust pipe. Front exhaust pipe to exhaust manifold m8x60. Front exhaust pipe to muffler with central pipe. Front exhaust pipe to sliding fit, center. Front right exhaust pipe to front exhaust line. Front exhaust pipe to rear exhaust pipe.
185
Hexagon Nut Mercedes-Benz
$3.00
Mercedes-Benz M8-10
Diameter: 8mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,25mm
Width across flats: 13mm. Cable to starting motor,terminal 30. Horn to bracket.
188
Flange Mercedes-Benz
$15.00
Mercedes-Benz Catalyst to rear exhaust pipe. Front exhaust pipe to central exhaust pipe. Front exhaust pipe to muffler. Catalytic converter to front exhaust pipe. Front exhaust pipe to rear exhaust pipe (slip fit). Front left exhaust pipe to front exhaust line. Exhaust pipe right to exhaust pipe left.
191
Sealing Ring Mercedes-Benz
Mercedes-Benz Catalyst on flange. Front exhaust pipe to central exhaust pipe. Catalyst to right exhaust manifold. Left exhaust pipe to right exhaust pipe. Catalytic converter to front exhaust pipe. Front right. Front left exhaust pipe to front exhaust line. Front exhaust pipe to rear exhaust pipe.
191
Sealing Ring Mercedes-Benz
$13.00
Mercedes-Benz Front exhaust pipe to central exhaust pipe. Catalyst to tight fit. Front left exhaust pipe to front exhaust line. Front exhaust pipe to rear exhaust pipe (fixed seat). Left exhaust pipe to right exhaust pipe.
203
Nut Mercedes-Benz
$3.90
Mercedes-Benz Front left and right. At clutch bell. Front exhaust line. Exhaust pipe front left to exhaust pipe front right. Exhaust pipe to exhaust manifold. Right muffler to left muffler.
212
Hexagon Head Bolt Mercedes-Benz
$4.20
Mercedes-Benz M8x25-8.8. Fuel tank to console. Bracket to mounting plate or to transmission. Bracket to bumper. Shackle to torsion bar. Intermediate bearing to frame.
215
Washer Mercedes-Benz
$2.50
Mercedes-Benz Bracket to transmission. Bracket to mounting plate. Front exhaust pipe to mounting plate. Front exhaust pipe to transmission.
218
Elastomer Washer Mercedes-Benz
$5.50
Mercedes-Benz Bracket to transmission. Front exhaust pipe to mounting plate. Front exhaust pipe to transmission. Bracket to mounting plate. Transmission case. For generator at support. For support, fixing plate, at clutch housing.
221
Nut Mercedes-Benz
$6.50
Mercedes-Benz Bracket to transmission. Bracket to mounting plate. Front exhaust pipe to transmission.
236
Rubber Bumper Mercedes-Benz
$16.50
Mercedes-Benz Central suspension. In front of central muffler. In front of posterior muffler. Behind posterior muffler. Stop above posterior muffler to bracket on cross member. Stop above posterior muffler to side member. Exhaust pipe suspension to tunnel end.
239
Rubber Bumper Mercedes-Benz
$9.25
Mercedes-Benz In front of central muffler. In front of,and behind,posterior muffler. Cross member below rear seat.
245
Rubber Bumper Mercedes-Benz
$4.90
Mercedes-Benz Rear muffler suspension. Stop above posterior muffler to bracket on cross member. Behind posterior muffler. Front exhaust pipe suspension. Central suspension. Stop above posterior muffler to side member. In front of central muffler. From connection fitting to cab rear panel.
248
Elastomer Suspension Mercedes-Benz
Mercedes-Benz Left and right. Central exhaust pipe. Main muffler rear suspension. Central suspension.
251
257
266
269
Holder Mercedes-Benz
Mercedes-Benz Underfloor,beside exhaust system and oil pan. Temperature sensor. Oxygen sensor.
272
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
203
Nut Mercedes-Benz
$3.90
Mercedes-Benz Front left and right. At clutch bell. Front exhaust line. Exhaust pipe front left to exhaust pipe front right. Exhaust pipe to exhaust manifold. Right muffler to left muffler.
No.
Part # / Description / Price
272
Hexagon Head Bolt Mercedes-Benz
$3.40
Mercedes-Benz OXYGEN SENSOR
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm.
272
Screw Mercedes-Benz
Mercedes-Benz Underfloor,beside exhaust system and oil pan. Temperature sensor. Door check to door.
No.
Part # / Description / Price
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
