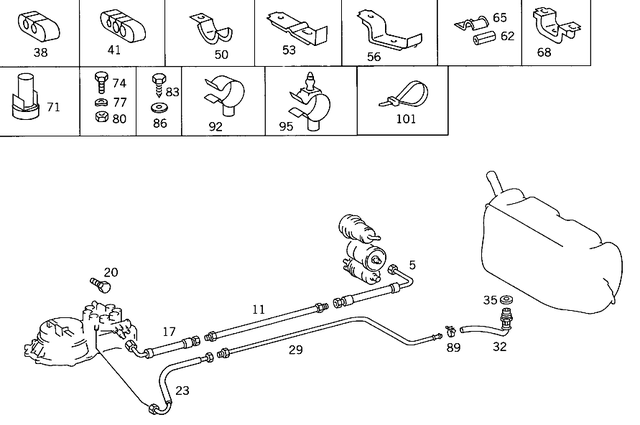

Fuel Lines for 1986 Mercedes-Benz 560SEL
No.
Part # / Description / Price
20
Hexagon Head Bolt
Mercedes-Benz
$3.50
Mercedes-Benz Amplifier at c-pillar. Amplifier to bracket. Reinforcem. At bracket, left.
32
35
Sealing Ring Mercedes-Benz
$6.25
Mercedes-Benz RETURN LINE TO FUEL TANK. 14X20-CUStrength / hardness class: CUInside diameter: 14mmOutside diameter: 20mmMaterial thickness: 1,5mm. ON FRONT SPRING LOAD ACCUMULATOR. 14X20-CUStrength / hardness class: CUInside diameter: 14mmOutside diameter: 20mmMaterial ...
38
Rubber Guide Mercedes-Benz
Mercedes-Benz 40 mm. Lines to fire wall,top left 20 mm. Fuel lines. Lines to frame 20 mm. Feed and return lines to fire wall reinforcement 20 mm.
41
Rubber Guide Mercedes-Benz
$7.00
Mercedes-Benz Fuel lines to body. Fuel & brake lines to left side member. Fuel and brake lines to frame floor unit. Fuel/brake/breather lines under rear seat backrest.
41
Rubber Guide Mercedes-Benz
$7.25
Mercedes-Benz Fuel lines to body. Lines to rear floor above rear axle, center. Fuel lines to cowl. Lines to frame. Fuel lines to front partition panel. Fuel lines under rear seat. Mounting pipe line.
50
Clamp Mercedes-Benz
Mercedes-Benz For electrical cable from main control panel to radio-telephone system. Ground cable to cowl. For main cable harness at reinforcement bracket, left and right. For starter cable at front wall or mounting control shaft resp.
56
56
Clamp Mercedes-Benz
$6.50
Mercedes-Benz Brake line mounting. Fuel lines to side member. Fuel/brake/breather lines under rear seat backrest. Brake line to side member. Mounting pipe line.
62
Hose Mercedes-Benz
$32.50
Mercedes-Benz 160 mm. 13.3x3 mm. From fuel filter to feed line. 13.3x3 mm. 300 mm. 13.3x3 mm. 110mm. 13.3x3 mm. Order by the meter. 13.3x3 mm. 250 mm. 13.3x3 mm. From activated charcoal filter to regeneration valve. 13.3x3 mm. 100 mm from fuel return line to fuel tark. 13.3x3 mm.
65
Clamp Mercedes-Benz
Mercedes-Benz Condensed water drain. Compressor-to-condenser refrigerant line to condenser. Starting cable to side member.
74
Hexagon Head Bolt Mercedes-Benz
$1.20
Mercedes-Benz Screw
Central ornamental cover to bumper and to panelling. Return hose to feed hose. Bracket to wheel arch panel. Return line to fuel tank. Sliding angle to sliding roof plate. Garnish mouldings to mercedes star. Roof rear rail. Garnish mouldings to ornamental frame. Line to bracket.
83
Tapping Screw Mercedes-Benz
$1.70
Mercedes-Benz Front fender to bumper bracket. Front fender partition panel to wheelhouse. Front fender to wheelhouse,bottom front. Bracket to frame. 6,3 x 13. Bracket to cowl. As required. 6.3x13. Bracket to wheel arch panel.
83
Tapping Screw Mercedes-Benz
$43.50
Mercedes-Benz 6.3x16. Cooling pipe to frame side member. Bracket with motor and gearing to rear pillar. B6.8x16. Bumper face bar upper part to front bumper. Control valve to right wheelhouse. Pipe line to right side member. From master cylinder to front left brake hose.
89
Hose Clamp Mercedes-Benz
$3.50
Mercedes-Benz Cexpansion reservoir to activated charcoal filter 9- 13 mm. 9-13 mm. Fuel hose to filter 9- 13 mm. 9-13 mm. Return line 9- 13 mm. 9-13 mm. Fuel hose to fuel line. 9-13 mm. From activated charcoal filter to breather line. 9-13 mm. Oil connection hose. 9-13 mm.
95
No.
Part # / Description / Price
5
No.
Part # / Description / Price
41
Rubber Guide Mercedes-Benz
$10.00
Mercedes-Benz Lines to rear floor above rear axle, left. Fuel lines to body. Brake/fuel lines to main floor,left.
56
Clamp Mercedes-Benz
Mercedes-Benz Fuel lines to front partition panel. Fuel and brake lines to engine cross member. Fuel & brake lines to left side member.
89
Clamp Mercedes-Benz
$6.75
Mercedes-Benz FUEL HOSE TO RETURN LINEDiameter: 13mmMaterial thickness: 0,4mmWidth across flats: SW7. FROM FUEL FILTER TO FEED LINEDiameter: 13mmMaterial thickness: 0,4mmWidth across flats: SW7. FROM FUEL PUMP TO FILTERDiameter: 13mmMaterial thickness: 0,4mmWidth across ...
116
116
Clamp Mercedes-Benz
Mercedes-Benz Cooling water hose to expansion tank. 25-40mm. Filling hose to expansion tank. 25-40mm. From expansion tank to radiator. 25-40mm.
