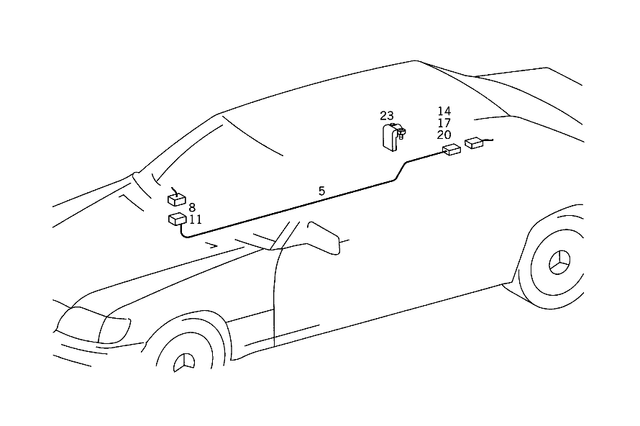

Acceleration Skid Control (Asr) for 1993 Mercedes-Benz 400SEL
No.
Part # / Description / Price
8
Plug Housing
Mercedes-Benz
Mercedes-Benz Module box cable-harness plugconnection. Air conditioner. Cockpit cable harness plug-connection. Lock angle sensor. Electronic accelerator/ snow chain switch.
11
Contact Pin Mercedes-Benz
$7.75
Mercedes-Benz To 016 545 01 28. 0.35-2.5 mm2 rk2.5. To 020 545 49 28. 0.35-2.5 mm2 rk2.5. 0,5-1,0mm2, to 023 545 52 28. 0.35-2.5 mm2 rk2.5. Only used with acceleration skid control (asr). 0.35-2.5 mm2 rk2.5. (lock angle sensor) 4.0 mm. 0.35-2.5 mm2 rk2.5. 2,5mm. 0.35-2.5 mm2 rk2.5. 0.25-2.5 mm. 0.35-2.5 mm2 rk2.5.
20
Round Receptacle Mercedes-Benz
$8.25
Mercedes-Benz 1MM. 0.35-0.75 MM2 RK1.0Leitungsquerschnitt Min/Max: 0,35-0,75mm2Oberflächenschutz PINs: AuELA: -Model 1: RKModel 2: 1.0. 1,0 MM. 0.35-0.75 MM2 RK1.0Leitungsquerschnitt Min/Max: 0,35-0,75mm2Oberflächenschutz PINs: AuELA: -Model 1: RKModel 2: 1.0. DATA LI ...
23
29
Receptacle Housing Mercedes-Benz
Mercedes-Benz Instrument cluster;4-pole. 4-pin rk2.5. Right rear heated seat connector x54/24. 4-pin rk2.5. Folding top case cover switch cluster. 4-pin rk2.5. Loudspeaker to front door. 4-pin rk2.5. Micro-switch connection. 4-pin rk2.5. Brake master cylinder. 4-pin rk2.5.
32
Contact Socket Mercedes-Benz
$2.70
Mercedes-Benz 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
38
Plug Housing Mercedes-Benz
$5.25
Mercedes-Benz Switch at folding top lock. 4-pin. Brake master cylinder. 4-pin. Engine cable harness plug-connection. 4-pin.
47
Cap Mercedes-Benz
Mercedes-Benz Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
50
Contact Socket Mercedes-Benz
$3.40
Mercedes-Benz 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
56
Receptacle Housing Mercedes-Benz
Mercedes-Benz Tail lamp cable harness plugconnection. Module box cable-harness plugconnection.
59
Receptacle Housing Mercedes-Benz
Mercedes-Benz Tempomat switch. 6-pin rk2.5. Change-over valve. 6-pin rk2.5. Belt feeder electronics,six-pole. 6-pin rk2.5. Push-button switch,cruise control. 6-pin rk2.5. Overheat warning indicator plugconnection. 6-pin rk2.5. Tempomat (cruise control). 6-pin rk2.5.
62
Receptacle Housing Mercedes-Benz
Mercedes-Benz Lock angle sensor. Declutching start unit. Diagnosis ezl. Seat adjustment control unit. Comfort control. Multiple function strip. Electronic accelerator/ snow chain switch. Pneumatic control unit. Pollutant sensor. Intermediate plug connection,diagnosis / tail lamp cable harness.
68
Receptacle Housing Mercedes-Benz
Mercedes-Benz Accelerator pedal switch. 4-pin. Warning buzzer. 4-pin. Oxygen sensor plug connection. 4-pin. Push to talk. 4-pin.
71
Contact Socket Mercedes-Benz
$2.90
Mercedes-Benz 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
89
Contact Spring Mercedes-Benz
$4.90
Mercedes-Benz Fuse and relay module, driver k40/2. Fuse and relay module, front passenger k40/4. FUSE AND RELAY BOX,DRIVER. 1.0-2.5 MM2 SPT
Leitungsquerschnitt Min/Max: 1,0-2,5mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: SPT
Release tool: W000 589 13 99 30.
89
Contact Spring Mercedes-Benz
$3.90
Mercedes-Benz Fuse and relay module, driver k40/2. L3. 0.5-1.0 MM2 SPTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PINs: SnELA: -Model 1: SPTRelease tool: W000 589 13 99 30. Copper. 0.5-1.0 MM2 SPTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PI ...
