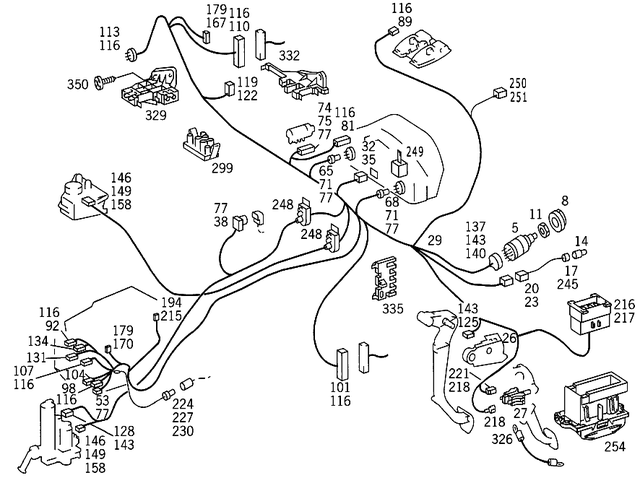

Inboard Cable Harness & Belt Warning Device for 1993 Mercedes-Benz 400SEL
No.
Part # / Description / Price
11
Nut
Mercedes-Benz
$3.70
Mercedes-Benz Light switch to instrument panel. Light rotary switch. Operating unit. Central covering to heater case. Air-conditioner temperature/vacuum switch to covering in case.
14
27
Switch Mercedes-Benz
$11.50
Mercedes-Benz Foot-operated parking brake. Interior lamp. With rest contact,for engine compartment and instrument panel. Parking brake control. Door contact switch. Hand brake. Burglary alarm system (edw). Electric window regulator to front panel left pillar.
30
Electric Line Mercedes-Benz
$28.50
Mercedes-Benz Wiring Harness
Belt locking retractor. Belt tensioner squib. Co-driver's air bag primer pellet.
35
Round Receptacle Mercedes-Benz
$8.25
Mercedes-Benz 1MM. 0.35-0.75 MM2 RK1.0Leitungsquerschnitt Min/Max: 0,35-0,75mm2Oberflächenschutz PINs: AuELA: -Model 1: RKModel 2: 1.0. 1,0 MM. 0.35-0.75 MM2 RK1.0Leitungsquerschnitt Min/Max: 0,35-0,75mm2Oberflächenschutz PINs: AuELA: -Model 1: RKModel 2: 1.0. DATA LI ...
38
Receptacle Housing Mercedes-Benz
Mercedes-Benz Interior lamps. 2-pin. Belt locking retractor. 2-pin. Dome lamp,front. 2-pin. Unipolar. 2-pin. Economy drive switch. 4-pole. 2-pin. Trunk lid. 2-pin. Stop light switch 2 polig. 2-pin. Asd/asr. 2-pin. Thermo-switch heating washer system. 2-pin. Parking brake control. 2-pin.
41
Housing Lower Part Mercedes-Benz
$3.20
Mercedes-Benz Buzzer contact;2-pole. 2-pin. Central locking system. 2-pin. Evaporator temperature sensor. 2-pin. Solenoid valve,bipolar. 2-pin. Temperature sensor;2-pole. 2-pin. Heating water valve,temperature sensor,electro-magnet valves;bipolar. 2-pin.
44
Coupling, Mechanical Mercedes-Benz
$2.40
Mercedes-Benz To 010 545 10 28. Upper part. To 008 545 37 28. Buzzer contact.
47
Receptacle Housing Mercedes-Benz
Mercedes-Benz At lf outlet. 3-pin. 3-pole. 3-pin. Heat exchanger temperature sensor 3 polig. 3-pin. Temperature sensor,heat exchanger, three-pin. 3-pin. Valve strip. 3-pin.
50
Receptacle Housing Mercedes-Benz
Mercedes-Benz Amplifier. 4-pin. Cd changer. 4-pin. Info module asr. 4-pin. Function control 4-matic. 4-pin. Timer,heater. 4-pin. Radio current supply. 4-pin. Additional heater preset time switch. 6-pole. 4-pin. 3-pole. 4-pin.
53
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Automatic antenna. 4-pin rk2.5. Valve strip. Fourpole. 4-pin rk2.5. Tempmatik control box. 6-pole. 4-pin rk2.5. Inboard feeler blower. 4-pin rk2.5. Electrical antenna,6-pole. 4-pin rk2.5. Ventilation blower. 4-pin rk2.5. Pre-glow time relay. 4-pole. 4-pin rk2.5.
56
Receptacle Housing Mercedes-Benz
Mercedes-Benz Heated rear pane switch. Headrest switch. Undercarriage change-over switch. Level switch. Engine residual heat utilization switch.
62
Receptacle Housing Mercedes-Benz
Mercedes-Benz Circulating air switch. 7-pole. Activated charcoal filter switch. Skid threshold switch.
74
77
Contact Socket Mercedes-Benz
$2.70
Mercedes-Benz 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
81
Receptacle Housing Mercedes-Benz
$15.00
Mercedes-Benz Transmission shifting lock. 2-pin. Parking interlock. 2-pin. Back-up lock and cruise control. 2-pin. Plug connection,entrance illumination,doors front left and right 2-polig. 2-pin.
86
Receptacle Housing Mercedes-Benz
Mercedes-Benz Temperature switch. Plug connection for cable harness of speakers in instrument panel. Multiple function strip. Cable-harness plug-connection, 6-pole. Interior safeguard control unit. Adjustable steering column. 6-polig.
89
Receptacle Housing Mercedes-Benz
Mercedes-Benz Dome lighting. 8-pin. Steering column jacket tube adjustment switch. 8-pin. Separation point ads. 8-pin. Dome lamp,front. 8-pin. Plug connection. 8-pin. Steering column electrically adjustable 8-polig. 8-pin. Steering column adjustment motor 8-polig. 8-pin. Tempomat switch. 8-pin.
95
Plug Mercedes-Benz
Mercedes-Benz Declutching-start/back-up-light switch plug connection. Engine cable harness plug-connection.
101
Receptacle Housing Mercedes-Benz
Mercedes-Benz Tail lamp cable harness plugconnection. Module box cable-harness plugconnection.
104
Receptacle Housing Mercedes-Benz
Mercedes-Benz Combination switch. 12-pin rk2.5. Vacuum pump. 12-pin rk2.5. Control module for soft top. 12-pin rk2.5.
110
Receptacle Housing Mercedes-Benz
Mercedes-Benz Module box cable-harness plugconnection. 18-pin. Litronic control module. 18-pin. Control unit 18-polig. 18-pin. Control unit light range ad juster electric. 18-pin.
116
Contact Socket Mercedes-Benz
$2.90
Mercedes-Benz 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
119
Receptacle Housing Mercedes-Benz
$6.00
Mercedes-Benz Front loudspeaker. 4-pin. Wiper motor. 4-pin. Circulating air switch. 4-pole. 4-pin. Pneumatic control unit. 4-pin. Air recirculation switch. 4-pin.
131
Receptacle Housing Mercedes-Benz
$8.75
Mercedes-Benz Automatic transmission shift-pointincrease relay. 6-pin. Relay for "locking completed" feedback. 6-pin. Engine shut-off relay. 6-pin. Intake manifold heating relay. 6-pole. 6-pin. Relay. 6-pole to 126 820 40 17,56 15. 6-pin. Air blow-in relay. 6-pin. Seat adjuster relay. 6-pin.
149
Cap Mercedes-Benz
Mercedes-Benz Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
158
Contact Socket Mercedes-Benz
$3.40
Mercedes-Benz 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
173
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Control unit of infrared remote control. 27-pin. Tempmatik control box. 27-pin.
179
Contact Spring Mercedes-Benz
$3.50
Mercedes-Benz Left exit lights. 0.5 mm2 jpt. To 220 545 17 28. 0.5 mm2 jpt. 0,5-1,0mm2. 0.5 mm2 jpt. Radio 0.5 -1.0 mm2. 0.5 mm2 jpt.
179
Spring Retaining Pin Mercedes-Benz
$3.90
Mercedes-Benz Contact Spring
1.5-2.5mm2. 1.5-2.5 MM2 JPT2.8
Leitungsquerschnitt Min/Max: 1,25-2,5mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: JPT
Model 2: 2.8
Release tool: W000 589 13 99 30
Crimp tool: W220 589 01 99 05.
185
Receptacle Housing Mercedes-Benz
Mercedes-Benz Heating control lighting. 2-pin. Regulating valve. 2-pin. Safety switch. 2-pin. Clutch "2". 2-pin. Lighting of gear indicator. 2-pin.
215
Contact Spring Mercedes-Benz
$4.90
Mercedes-Benz Fuse and relay module, driver k40/2. Fuse and relay module, front passenger k40/4. FUSE AND RELAY BOX,DRIVER. 1.0-2.5 MM2 SPT
Leitungsquerschnitt Min/Max: 1,0-2,5mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: SPT
Release tool: W000 589 13 99 30.
215
Contact Spring Mercedes-Benz
$3.90
Mercedes-Benz Fuse and relay module, driver k40/2. L3. 0.5-1.0 MM2 SPTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PINs: SnELA: -Model 1: SPTRelease tool: W000 589 13 99 30. Copper. 0.5-1.0 MM2 SPTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PI ...
227
Housing Upper Part Mercedes-Benz
$2.70
Mercedes-Benz To 008 545 20 28,011 545 10 28. Rear fuel pump cable harness plugconnection.
230
Plug Pin Mercedes-Benz
Mercedes-Benz To 011 545 10 28. 4.0 mm. To 009 545 14 28. Tempomat(cruise control) plug-connect. To 012 545 84 28. 4.0mm2.
245
Socket Mercedes-Benz
Mercedes-Benz Air nozzle lighting. Lighting of rotary light switch escutcheon. Cigar lighter. Ashtray lighting. Lighting of gear indicator. Heating control lighting.
248
Grommet Mercedes-Benz
Mercedes-Benz Blower. Electric cable thru fire wall. Fuel pump branch-off to luggage compartment floor. Automatic transmission branch-off. Electric cable thru tunnel. Scuff protection for electric cables left.
248
252
326
Ground Line Mercedes-Benz
Mercedes-Benz Hydraulic unit abs/asr. Used without with acceleration skid control (asr).
335
356
Tapping Screw Mercedes-Benz
Mercedes-Benz Control unit to bracket. Heat shield mounting. Bracket mounting. Warning device to tempomat (cruise control) bracket. Exhaust muffler to rear bracket. 4.8x9.5. Warning device at cross member. Control unit to tunnel. Bracket to parking brake.
