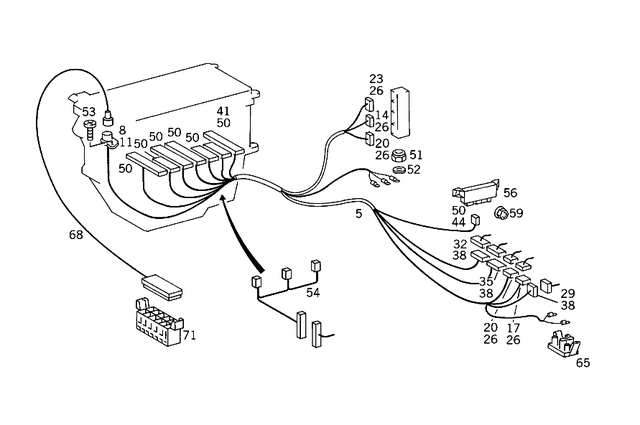

Corresponding Cable Harness, in Apparatus Case for 1993 Mercedes-Benz 400SEL
No.
Part # / Description / Price
5
11
Round Receptacle
Mercedes-Benz
$8.25
Mercedes-Benz 1MM. 0.35-0.75 MM2 RK1.0Leitungsquerschnitt Min/Max: 0,35-0,75mm2Oberflächenschutz PINs: AuELA: -Model 1: RKModel 2: 1.0. 1,0 MM. 0.35-0.75 MM2 RK1.0Leitungsquerschnitt Min/Max: 0,35-0,75mm2Oberflächenschutz PINs: AuELA: -Model 1: RKModel 2: 1.0. DATA LI ...
15
Receptacle Housing Mercedes-Benz
$9.00
Mercedes-Benz Air conditioner cable harness plugconnection. 4-pin. Seat adjustment control unit. 4-pin. Skid threshold switch. 4-pin. Engine cable harness plug-connection. 4-pin. Lock angle sensor. 4-pin. Parktronic indicator, cockpit. 4-pin. Clutch switch,tempomat (cruise control). 4-pin. Test contacting carb. 4-pin. To a 0005426418. 4-pin.
20
Receptacle Housing Mercedes-Benz
Mercedes-Benz Dome lighting. 8-pin. Steering column jacket tube adjustment switch. 8-pin. Separation point ads. 8-pin. Dome lamp,front. 8-pin. Plug connection. 8-pin. Steering column electrically adjustable 8-polig. 8-pin. Steering column adjustment motor 8-polig. 8-pin. Tempomat switch. 8-pin.
23
Receptacle Housing Mercedes-Benz
Mercedes-Benz Headlamp cable harness plug-connection. Tail lamp cable harness plugconnection. Tail lamps.
26
Contact Socket Mercedes-Benz
$2.90
Mercedes-Benz 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
29
Receptacle Housing Mercedes-Benz
Mercedes-Benz Diagnosis ezl. Electronic accelerator cable-harness plug-connection. Multiple function strip.
32
Plug Housing Mercedes-Benz
Mercedes-Benz Cockpit cable harness plug-connection. Tail lamp cable harness plugconnection.
38
Contact Pin Mercedes-Benz
$7.75
Mercedes-Benz To 016 545 01 28. 0.35-2.5 mm2 rk2.5. To 020 545 49 28. 0.35-2.5 mm2 rk2.5. 0,5-1,0mm2, to 023 545 52 28. 0.35-2.5 mm2 rk2.5. Only used with acceleration skid control (asr). 0.35-2.5 mm2 rk2.5. (lock angle sensor) 4.0 mm. 0.35-2.5 mm2 rk2.5. 2,5mm. 0.35-2.5 mm2 rk2.5. 0.25-2.5 mm. 0.35-2.5 mm2 rk2.5.
50
Contact Spring Mercedes-Benz
$3.50
Mercedes-Benz Left exit lights. 0.5 mm2 jpt. To 220 545 17 28. 0.5 mm2 jpt. 0,5-1,0mm2. 0.5 mm2 jpt. Radio 0.5 -1.0 mm2. 0.5 mm2 jpt.
50
Spring Retaining Pin Mercedes-Benz
$3.90
Mercedes-Benz Contact Spring
1.5-2.5mm2. 1.5-2.5 MM2 JPT2.8
Leitungsquerschnitt Min/Max: 1,25-2,5mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: JPT
Model 2: 2.8
Release tool: W000 589 13 99 30
Crimp tool: W220 589 01 99 05.
51
Hexagon Nut Mercedes-Benz
$3.40
Mercedes-Benz Nut
M6. Bracket to water tank. Mounting parts. Control unit. Bracket mounting. Brake booster assembly to asr bracket. Fuel lines to cowl. Transistorized ignition switchgear to wheelhouse panel. Roller blind to rear panel covering, top.
56
Diode Module Mercedes-Benz
Mercedes-Benz Increase in number of revolutions in case of increased power consumption.
65
Line Connector Mercedes-Benz
Mercedes-Benz Electric cable regulator cable. Stop-light/speed signal. Motor connection,left and right front doors. Bipolar. At bracket. To floor panel in legroom. Cable harness to front door. Electric cable to rear door interior plate. Terminal "58d".
68
Line Mercedes-Benz
Mercedes-Benz Diagnosis box. Only applicable to vehicles equipped with one of the following sa's: code: 228/241/245/291/442/551/552.
71
Plug Mercedes-Benz
Mercedes-Benz Only applicable to vehicles equipped with one of the following sa's: code: 228/241/245/291/442/551/552.
