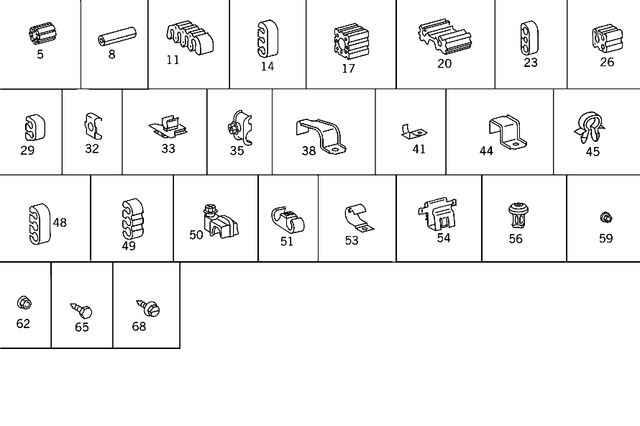

Hydraulic Line Mounting Parts for 1993 Mercedes-Benz 400SEL
No.
Part # / Description / Price
5
Hose
Mercedes-Benz
Mercedes-Benz Delivery line to wheel arch. High pressure line to subframe. From cooling pipe to pump 330 mm. High pressure hose to cross member. At cross member.
17
Damping Strip Mercedes-Benz
Mercedes-Benz Feed line to air water canal. Mounting, clutch cable. On side member,front left.
33
Holder Mercedes-Benz
Mercedes-Benz Rear axle wiring. Speed sensor to rear axle. Brake lining wear indicator cable to rear axle.
41
Clamp Mercedes-Benz
Mercedes-Benz Brake line to fire wall. Right front brake line to left top connection support. Fuel lines to vehicle floor. Main cable harness to fire wall. Brake line to cross member. Breather hose to rear axle cross member. Brake line to side member. Fuel line to side member. Fuel lines on floor under rear seat.
44
Fastening Clamp Mercedes-Benz
Mercedes-Benz For stationary heater fuel line. Brake line to front axle cross member. Fuel lines on floor under rear seat.
45
46
Spacer Mercedes-Benz
$3.90
Mercedes-Benz 18mm. 18 MM. As spacer between expansion-valve-tocompressor line & low pressure hose. 18 mm. Oil connection hose to high pressure expansion hose. 18 mm. From expansion valve to compressor. 18 mm.
48
Rubber Guide Mercedes-Benz
$7.25
Mercedes-Benz Fuel lines to body. Lines to rear floor above rear axle, center. Fuel lines to cowl. Lines to frame. Fuel lines to front partition panel. Fuel lines under rear seat. Mounting pipe line.
49
50
Clamp Mercedes-Benz
$2.90
Mercedes-Benz Fuel lines on floor under rear seat. Feed line to air water canal. Fuel lines to vehicle floor 17 x 20 mm. Fuel lines to body. Return line to body. Cable harness mounting. High pressure hose to cross member.
51
Clamp Mercedes-Benz
Mercedes-Benz On fire wall. Breather line to shock absorber dome, right. Brake line mounting from hydraulic unit to sep. Point. Fuel line. Leak and breather lines to floor above rear axle. Brake line fastening and brake wear indicator. Master cylinder to charge piston unit.
53
Clamp Mercedes-Benz
Mercedes-Benz Delivery line to wheel arch. High pressure line to subframe. From cooling pipe to pump. High pressure hose to cross member. On side member.
54
Clamp Mercedes-Benz
Mercedes-Benz Belt lock to seat rail. Cable harness to roof rail. Electric cable to bracket. At bracket. Blower regulator plug to air conditioner case. Cross member below front seat. Electric cable to rear lid. Test plug. Rear lid lock.
56
Tensioner Mercedes-Benz
$5.00
Mercedes-Benz Underbody left. Fuel line to floor,right. To mount fuel lines. In wheelhouse front left. To firewall and longitudinal member. Brake line to cross member.
65
Tapping Screw Mercedes-Benz
$1.70
Mercedes-Benz Front fender to bumper bracket. Front fender partition panel to wheelhouse. Front fender to wheelhouse,bottom front. Bracket to frame. 6,3 x 13. Bracket to cowl. As required. 6.3x13. Bracket to wheel arch panel.
No.
Part # / Description / Price
8
Hose Mercedes-Benz
$32.50
Mercedes-Benz 160 mm. 13.3x3 mm. From fuel filter to feed line. 13.3x3 mm. 300 mm. 13.3x3 mm. 110mm. 13.3x3 mm. Order by the meter. 13.3x3 mm. 250 mm. 13.3x3 mm. From activated charcoal filter to regeneration valve. 13.3x3 mm. 100 mm from fuel return line to fuel tark. 13.3x3 mm.
38
Clamp Mercedes-Benz
$6.50
Mercedes-Benz Brake line mounting. Fuel lines to side member. Fuel/brake/breather lines under rear seat backrest. Brake line to side member. Mounting pipe line.
