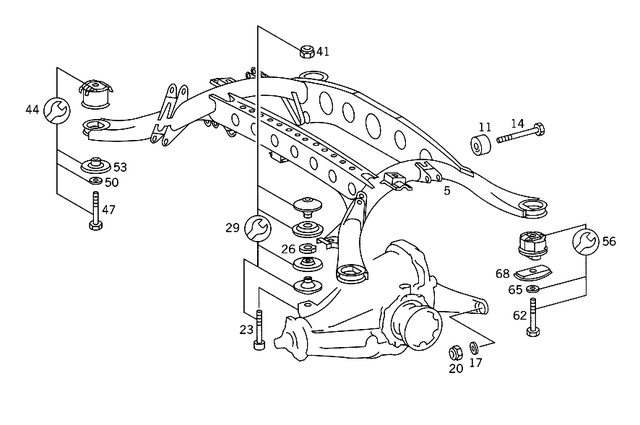

Rear Axle Support for 1993 Mercedes-Benz 400SEL
No.
Part # / Description / Price
20
Hexagon Nut
Mercedes-Benz
$7.50
Mercedes-Benz Nut
Spring control arm to rear subframe. Upper transverse control arm to steering knuckle. Lower control arm to steering knuckle. Torsion bar to frame. Lower joint to control arm. Joint to steering knuckle. Shock absorber to lower control arm.
23
Cap Screw Mercedes-Benz
$3.90
Mercedes-Benz Axle housing at rear axle carrier, front. M10X65
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Differential to cross stabilizer front. Axle housing to rear subframe.
26
Spacer Disk Mercedes-Benz
$4.70
Mercedes-Benz Adapter to rear axle centerpiece. 1 mm. Differential to cross stabilizer front 1 mm. 1 mm. Rear axle differential to front cross brace 1 MM. 1 MM. As required 1.0 mm. 1 mm. As required, no. Of notches:. 1 mm. As required 1.00 mm. 1 mm.
26
Spacer Disk Mercedes-Benz
$5.50
Mercedes-Benz Spacer Washer
Adapter to rear axle centerpiece. 2mm. Differential to cross stabilizer front 2mm. 2mm. Rear axle differential to front cross brace 2mm. 2mm. As required 2.0 mm. 2mm. As required, no. Of notches:. 2mm. As required 2.00 mm. 2mm.
26
Spacer Disk Mercedes-Benz
$5.75
Mercedes-Benz Adapter to rear axle centerpiece. 4 mm. Differential to cross stabilizer front 4 mm. 4 mm. Rear axle differential to front cross brace 4 MM. 4 MM. As required 4.0 mm. 4 mm. As required, no. Of notches:. 4 mm. As required 4.00 mm. 4 mm.
26
Spacer Disk Mercedes-Benz
$6.00
Mercedes-Benz Adapter to rear axle centerpiece. 3 mm. Differential to cross stabilizer front 3 mm. 3 mm. Rear axle differential to front cross brace 3 MM. 3 MM. As required 3.0 mm. 3 mm. As required, no. Of notches:. 3 mm. As required 3.00 mm. 3 mm.
29
Rubber Bushing Mercedes-Benz
$13.50
Mercedes-Benz Repair Kit, Rr. Axle Carr
Axle housing at rear axle carrier, front. Axle housing to rear subframe,front.
41
Nut Mercedes-Benz
Mercedes-Benz Steering shock absorber to front axle. Steering shock absorber to drag link and to frame.
41
Hexagon Nut Mercedes-Benz
$4.40
Mercedes-Benz M10
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Propeller shaft to transmission. Shock absorber to lower control arm m 10x1. Shock absorber to spring control arm m 10x1. Hydropneumatic spring leg to spring control arm m 10. Shock absorber to frame. Hydropneumatic spring leg to rear axle.
41
Hexagon Nut Mercedes-Benz
$3.90
Mercedes-Benz M10
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 16mm. Rod to torsion bar. Shock absorber to frame. Trailer coupling to bracket. Camber struts to wheel bearing m 10. Shock absorber to spring control arm m 10. Axle housing to rear subframe. Tie rod to wheel bearing m10.
65
Washer Mercedes-Benz
Mercedes-Benz BRACKET TO CONSOLE
Diameter: 13mm
Strength / hardness class: 200 HV
Inside diameter: 13mm
Outside diameter: 30mm
Material thickness: 6mm.
