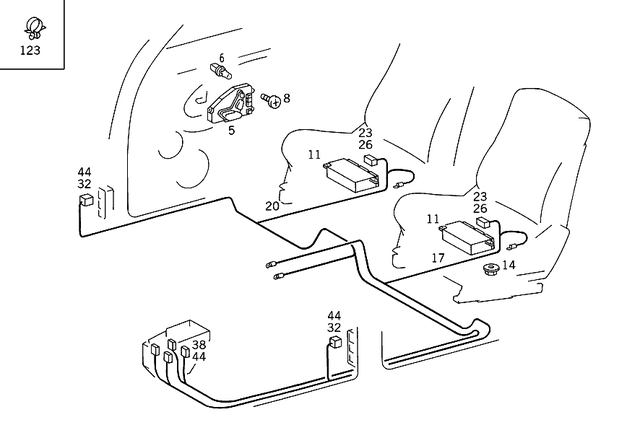

Electric Front Seat Adjustment for 1993 Mercedes-Benz 400SEL
No.
Part # / Description / Price
11
Control Unit
Mercedes-Benz
Mercedes-Benz Co-driver's seat adjustment operated from the rear. Elec. Rear seat adjuster,with memory. Codriver's seat operated from rear door.
17
20
23
Plug Mercedes-Benz
Mercedes-Benz Control unit of comfort control. 12-pin. Seat adjustment control unit, with memory. 12-pin.
26
Contact Socket Mercedes-Benz
$2.90
Mercedes-Benz 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
26
Contact Socket Mercedes-Benz
Mercedes-Benz D 4,0mm. 4.0 mm. To 014 545 91 28. To 015 545 56 28,015 545 57 28. 4mm (to 015 545 29 28). 4 mm2.
44
Contact Spring Mercedes-Benz
$3.50
Mercedes-Benz Left exit lights. 0.5 mm2 jpt. To 220 545 17 28. 0.5 mm2 jpt. 0,5-1,0mm2. 0.5 mm2 jpt. Radio 0.5 -1.0 mm2. 0.5 mm2 jpt.
44
Contact Spring Mercedes-Benz
$4.90
Mercedes-Benz Fuse and relay module, driver k40/2. Fuse and relay module, front passenger k40/4. FUSE AND RELAY BOX,DRIVER. 1.0-2.5 MM2 SPT
Leitungsquerschnitt Min/Max: 1,0-2,5mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: SPT
Release tool: W000 589 13 99 30.
44
Spring Retaining Pin Mercedes-Benz
$3.90
Mercedes-Benz Contact Spring
1.5-2.5mm2. 1.5-2.5 MM2 JPT2.8
Leitungsquerschnitt Min/Max: 1,25-2,5mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: JPT
Model 2: 2.8
Release tool: W000 589 13 99 30
Crimp tool: W220 589 01 99 05.
44
Contact Spring Mercedes-Benz
$3.90
Mercedes-Benz Fuse and relay module, driver k40/2. L3. 0.5-1.0 MM2 SPTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PINs: SnELA: -Model 1: SPTRelease tool: W000 589 13 99 30. Copper. 0.5-1.0 MM2 SPTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PI ...
80
Resistor Mercedes-Benz
Mercedes-Benz Left seat height adjustment,rear. With programming to 140 820 43 42. Potentiometer to 140 820 43 42.
80
Resistor Mercedes-Benz
Mercedes-Benz Seat cushion depth adjustment with programming,right to 140 820 42 42. Potentiometer to 140 820 42 42.
80
Resistor Mercedes-Benz
Mercedes-Benz Left seat height adjustment,front. With programming to 140 820 39 42. Potentiometer to 140 820 39 42.
80
Resistor Mercedes-Benz
Mercedes-Benz Right seat height adjustment,front. With programming to 140 820 40 42. Potentiometer to 140 820 40 42.
80
Resistor Mercedes-Benz
Mercedes-Benz Fore and aft adjustment,left seat. With programming to 140 820 37 42. Potentiometer to 140 820 37 42.
80
Resistor Mercedes-Benz
Mercedes-Benz Right seat height adjustment,rear. With programming to 140 820 44 42. Potentiometer to 140 820 44 42.
80
Resistor Mercedes-Benz
Mercedes-Benz Fore and aft adjustment,right seat. With programming to 140 820 38 42. Potentiometer to 140 820 38 42.
80
Resistor Mercedes-Benz
Mercedes-Benz Seat cushion depth adjustment with programming,left to 140 820 41 42. Potentiometer to 140 820 41 42.
83
Receptacle Housing Mercedes-Benz
Mercedes-Benz Tempomat switch. 6-pin rk2.5. Change-over valve. 6-pin rk2.5. Belt feeder electronics,six-pole. 6-pin rk2.5. Push-button switch,cruise control. 6-pin rk2.5. Overheat warning indicator plugconnection. 6-pin rk2.5. Tempomat (cruise control). 6-pin rk2.5.
