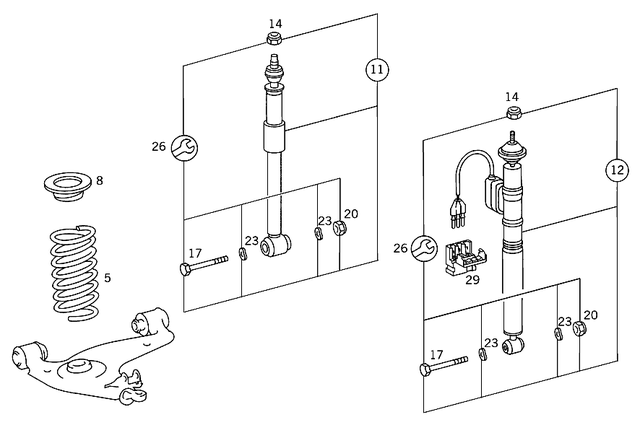

Front Springs and Suspension with, or Less, Adaptive Damping System for 1993 Mercedes-Benz 400SEL
No.
Part # / Description / Price
14
Hexagon Nut
Mercedes-Benz
$3.90
Mercedes-Benz M10
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 16mm. Rod to torsion bar. Shock absorber to frame. Trailer coupling to bracket. Camber struts to wheel bearing m 10. Shock absorber to spring control arm m 10. Axle housing to rear subframe. Tie rod to wheel bearing m10.
14
Nut Mercedes-Benz
Mercedes-Benz Hydropneumatic spring leg to spring control arm. Shock absorber to lower control arm. Shock absorber to spring control arm.
17
Hexagon Head Bolt Mercedes-Benz
$37.00
Mercedes-Benz SHOCK ABSORBER TO LOWER CONTROL ARMDiameter: 12mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Trailing arm to mounting consoleDiameter: 12mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Left trailing a ...
20
Hexagon Nut Mercedes-Benz
$7.50
Mercedes-Benz Spring control arm to rear subframe. Upper transverse control arm to steering knuckle. Lower control arm to steering knuckle. Torsion bar to frame. Lower joint to control arm. Joint to steering knuckle. Shock absorber to lower control arm.
