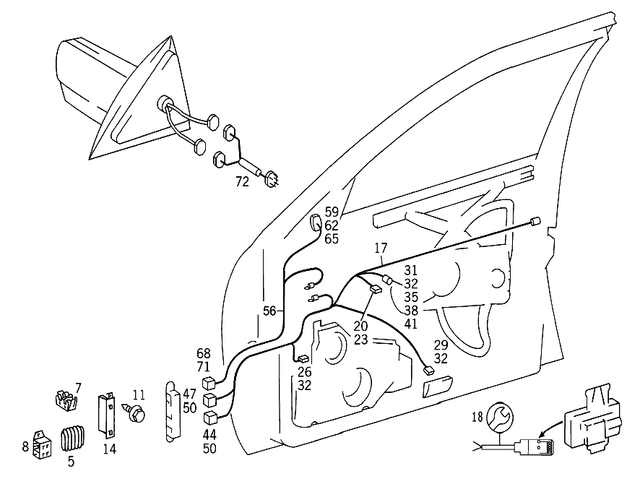

Door Cable Harnesses & Protective Hoses for 1993 Mercedes-Benz 400SEL
No.
Part # / Description / Price
5

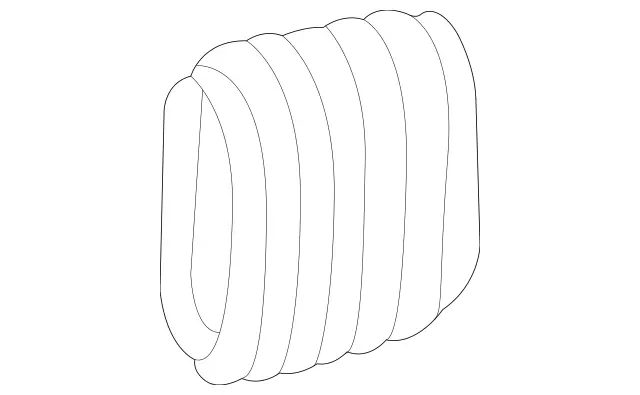

Hose
Mercedes-Benz
$37.00
Mercedes-Benz Between door and a-pillar. Central-pillar-to-rear-door-cable protective hose. Front door. From a-pillar to door.
18
Electric Line Mercedes-Benz
Mercedes-Benz Repair Kit
Side airbag repair solution. 2-pinmodel 1: rkmodel 2: 1slots: 2. Sidebag, left r12/9. 2-pinmodel 1: rkmodel 2: 1slots: 2. Front passenger airbag squib. 2-PINModel 1: RKModel 2: 1Slots: 2. Front passenger airbag, yellow. 2-pinmodel 1: rkmodel 2: 1slots: 2. ...
20
Receptacle Housing Mercedes-Benz
Mercedes-Benz Central locking mechanism interior control. Conjunction with parking aid switch. Comfort/sport change-over trimmer plug 5-polig. Inner central locking mechanism switch.
23
Contact Socket Mercedes-Benz
$2.70
Mercedes-Benz 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
32
Contact Socket Mercedes-Benz
$2.90
Mercedes-Benz 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
38
Cap Mercedes-Benz
Mercedes-Benz Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
41
Contact Socket Mercedes-Benz
$3.40
Mercedes-Benz 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
47
Plug Mercedes-Benz
Mercedes-Benz Door cable harness separation point. 9-pin mcp2.8. Tv/tuner antenna connector x1/28. 9-pin mcp2.8.
50
Male Spade Connector Mercedes-Benz
Mercedes-Benz 1.5-2.5 MM. 1,5-2,5 MM2
Leitungsquerschnitt Min/Max: 1,5-2,5mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MCP
Model 2: 2.8. 1.5-2.5mm2. 1,5-2,5 MM2
Leitungsquerschnitt Min/Max: 1,5-2,5mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MCP
Model 2: 2.8.
50
Male Spade Connector Mercedes-Benz
Mercedes-Benz 0.5-1 MM2. 1.0 MM2
Leitungsquerschnitt Min/Max: 0,5-1,0mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MCP
Model 2: 2.8.
50
Contact Spring Mercedes-Benz
$1.50
Mercedes-Benz Male Spade Connector
Tin-plated. 1.5-2.5 MM2 MCP6.3
Leitungsquerschnitt Min/Max: 1,5-2,5mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MCP
Model 2: 6.3. 1.5-2.5 MM. 1.5-2.5 MM2 MCP6.3
Leitungsquerschnitt Min/Max: 1,5-2,5mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MCP
Model 2: 6.3. FUSE BOX 1.5-2.5mm2. 1.5-2.5 MM2 MCP6.3
Leitungsquerschnitt Min/Max: 1,5-2,5mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MCP
Model 2: 6.3.
59
Receptacle Housing Mercedes-Benz
Mercedes-Benz Taximeter a50. 8-pin rk1.0. Sensor plug-connection. 8-pin rk1.0. Parktronic, frame floor system. 8-pin rk1.0. Rearview mirror. 8-pin rk1.0. Rear plug connection. 8-pin rk1.0.
59
Receptacle Housing Mercedes-Benz
Mercedes-Benz Inside rearview mirror. 8-pin. Interior mirror. 8-pin. Rearview mirror adjustment. 8-pin. Rearview mirror glare control switch. 8-pin. Adjustable outside rearview mirror. 8-pin. Automatically dipping inside rear view mirror. 8-pin. Mirror innen. 8-pin. Automatic mirror glare control. 8-pin.
62
Cap Mercedes-Benz
$6.75
Mercedes-Benz Housing adjustment. To a 017 545 56 28 (a50). To 017 545 56 28,022 545 42 28.
65
Round Receptacle Mercedes-Benz
$8.25
Mercedes-Benz 1MM. 0.35-0.75 MM2 RK1.0Leitungsquerschnitt Min/Max: 0,35-0,75mm2Oberflächenschutz PINs: AuELA: -Model 1: RKModel 2: 1.0. 1,0 MM. 0.35-0.75 MM2 RK1.0Leitungsquerschnitt Min/Max: 0,35-0,75mm2Oberflächenschutz PINs: AuELA: -Model 1: RKModel 2: 1.0. DATA LI ...
86
Receptacle Housing Mercedes-Benz
Mercedes-Benz Seat adjustment switch. Schalter sitzverstellung. Rechts. Seat adjuster.
89
Receptacle Housing Mercedes-Benz
Mercedes-Benz Seat adjustment switch. Schalter sitzverstellung. Links. Seat adjuster.
98
Plug Mercedes-Benz
Mercedes-Benz Door cable harness separation point. Asr plug-connection. Electronic accelerator cable-harness plug-connection. From electric transmission cable harness to relays and diodes.
119
Male Spade Connector Mercedes-Benz
Mercedes-Benz 0,5-1,0mm2. 9-PIN MCP2.8
Leitungsquerschnitt Min/Max: 0,5-1,0mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MCP
Model 2: 2.8.
191
No.
Part # / Description / Price
50
Contact Spring Mercedes-Benz
Mercedes-Benz 0,5-1,0mm2. 1.5-2.5 MM2
Leitungsquerschnitt Min/Max: 1,5-2,5mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MCP
Model 2: 2.8. 1.5-2.5mm2. 1.5-2.5 MM2
Leitungsquerschnitt Min/Max: 1,5-2,5mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MCP
Model 2: 2.8.
191
Clamp Mercedes-Benz
$2.00
Mercedes-Benz For hose to body. 20 mm. De-aeration line. 20 mm. Cable harness mounting. 20 mm. Wiring harness. 20 mm. Bracket mounting. 20 mm. Hose to engine. 20 mm. Mounting, vent lines to corrugated hose, right. 20 mm. Adapter cable to fan shroud. 20 mm. Filler neck. 20 mm. Breather line to engine. 20 mm.
191
