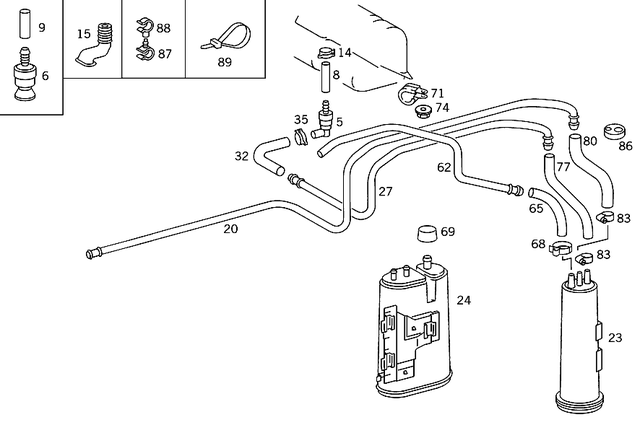

Closed Fuel-Evaporation-Control System for 1993 Mercedes-Benz 400SEL
No.
Part # / Description / Price
8
Hose
Mercedes-Benz
Mercedes-Benz Breather line to tank vent pipe 120 mm. Ventilation. (vent line) from activated charcoal filter to boot 590 mm. 50mm. Breather line to tank breather pipe, 80 mm. Rear breather line to vent valve 190 mm. (vent line) from activated charcoal filter to boot 630 mm. From activated charcoal filter to breather line 210 mm. From activated charcoal filter to breather line 250 mm. Return 240 mm.
8
Hose Mercedes-Benz
$24.50
Mercedes-Benz Activated charcoal filter for purge line. 15,3X3MM. Hose to valve 55mm. 15,3x3mm. Feed and return lines, breathing 55mm. 15,3x3mm. Return line to fuel filter 200mm. 15,3x3mm. Vent pipe fuel tank to t-fitting or vent valve 50mm. 15,3x3mm. Vent line 45 mm. 15,3x3mm. Purge line to check valve. 15,3x3mm. From activated charcoal filter to regeneration line. 15,3x3mm.
14
Spring Hose Clamp Mercedes-Benz
$3.00
Mercedes-Benz Hose to fuel tank. Suction hose to induction line. Feed and return lines, breathing. From fuel tank to breather valve. (vent line) from activated charcoal filter to boot. Vent pipe fuel tank to t-fitting or vent valve. Vent hose to activated charcoal filter.
17
Clamp Mercedes-Benz
Mercedes-Benz HOSE TO ACCUMULATOR & DAMPER CAGEDiameter: 11mmMaterial thickness: 0,4mmWidth across flats: SW7. CONNECTING PIPE ON BRACKETDiameter: 11mmMaterial thickness: 0,4mmWidth across flats: SW7. FROM ACCUMULATOR TO DAMPER CAGE & VALVEDiameter: 11mmMaterial thickne ...
21
Purge Valve Mercedes-Benz
Mercedes-Benz Regeneration valve. Evaporative emission control system. In engine compartment.
35
Spring Hose Clamp Mercedes-Benz
$4.00
Mercedes-Benz Between combination valve and breather pipe. Regeneration valve. Return hose to return line. From fuel tank to breather valve.
41
Hose Mercedes-Benz
$32.50
Mercedes-Benz 160 mm. 13.3x3 mm. From fuel filter to feed line. 13.3x3 mm. 300 mm. 13.3x3 mm. 110mm. 13.3x3 mm. Order by the meter. 13.3x3 mm. 250 mm. 13.3x3 mm. From activated charcoal filter to regeneration valve. 13.3x3 mm. 100 mm from fuel return line to fuel tark. 13.3x3 mm.
44
47
Hose Mercedes-Benz
$23.50
Mercedes-Benz Breather line to breather valve 45 mm. Cexpansion reservoir to activated charcoal filter 45 mm. Vent valve on vent pipe 45 mm. From left regeneration valve to engine 45 mm.
53
Hose Clamp Mercedes-Benz
Mercedes-Benz From reservoir to left rear wheel arch. Breather line to breather valve. Expansion tank 13,2 - 15,7mm.
56
Clamp Mercedes-Benz
Mercedes-Benz MOUNTING, CLUTCH CABLE
Inside diameter: 8mm
Material thickness: 0,6mm
Model 1: W3. PIPE LINE TO CROSS MEMBER
Inside diameter: 8mm
Material thickness: 0,6mm
Model 1: W3. FUEL LINE TO CONSOLE
Inside diameter: 8mm
Material thickness: 0,6mm
Model 1: W3. RETURN
Inside diameter: 8mm
Material thickness: 0,6mm
Model 1: W3.
71
Mounting Clamp Mercedes-Benz
$9.50
Mercedes-Benz Clamp
Regeneration line to left front wheel arch. 10/15. Vent hose to activated charcoal filter. 10/15. Oil line to engine. 10/15.
113
Hose Mercedes-Benz
Mercedes-Benz Fluid reservoir. Purge valve to connecting point. Activated charcoal filter to purge valve. Regeneration valve to throttle housing. To purge line. At intake manifold. Molded hose. From regeneration line to engine. Intake manifold to purge valve,left. From right regeneration valve to engine.
119
Hose Mercedes-Benz
$7.00
Mercedes-Benz Regeneration valve to throttle housing. Purge valve to molded hose. Regeneration valve to intake pipe. From activated charcoal filter to regeneration valve.
No.
Part # / Description / Price
26
Binder Mercedes-Benz
$4.20
Mercedes-Benz Hose fastening. 26.5 mm. Between activated charcoal filter and regeneration valve. 26.5 mm. Hose to filler neck. 26.5 mm. (vent line) from activated charcoal filter to boot. 26.5 mm. From tank to vent line. 26.5 mm. Activated charcoal filter to shut-off valve. 26.5 mm. Hose to purge valve. 26.5 mm.
71
Clamp Mercedes-Benz
Mercedes-Benz Vent hose to activated charcoal filter. 10/15 mm. Pipe line to cross member. 10/15 mm. Vent line to left side member,outside. 10/15 mm.
77
Hose Mercedes-Benz
$32.50
Mercedes-Benz Fuel Hose
160 mm. 13.3x3 mm. From fuel filter to feed line. 13.3x3 mm. 300 mm. 13.3x3 mm. 110mm. 13.3x3 mm. Order by the meter. 13.3x3 mm. 250 mm. 13.3x3 mm. From activated charcoal filter to regeneration valve. 13.3x3 mm. 100 mm from fuel return line to fuel tark. 13.3x3 mm.
140

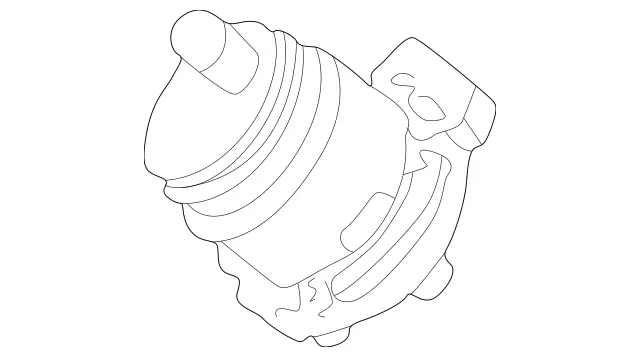

Valve Mercedes-Benz
$398.00
Mercedes-Benz Cutoff Valve
Shut-off valve. Regeneration valve. Activated charcoal filter on purge line.
