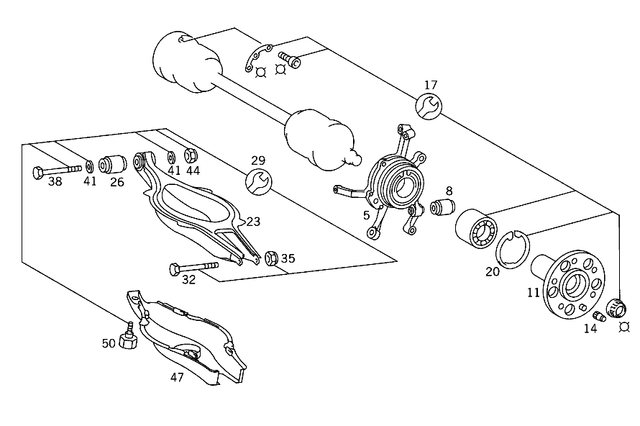

Rear Axle Mount for 1993 Mercedes-Benz 400SEL
No.
Part # / Description / Price
8
Supporting Joint
Mercedes-Benz
$72.00
Mercedes-Benz Universal Joint
Left and right. Spring control arm to wheel bearing. Left suspension strut. Wheel carrier. Left spring link.
17
Twelve-Point Nut W Collar Mercedes-Benz
$18.50
Mercedes-Benz Repair Kit
Axle shaft to rear axle shaft flange m26. Axle shaft at rear axle shaft flange, right. Left.
17

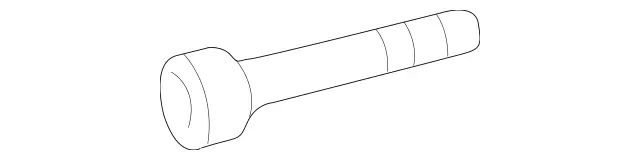

Screw Mercedes-Benz
$4.50
Mercedes-Benz Repair Kit
Axle shaft to rear axle shaft flange. Axle shaft to interior flange m12x50-10.9.
20

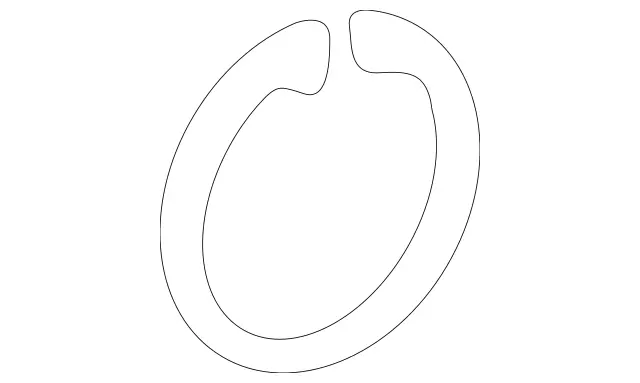

Retaining Ring Mercedes-Benz
$11.50
Mercedes-Benz REAR AXLE. 88X3
Inside diameter: 88mm
Material thickness: 3mm. LEFT AND RIGHT. 88X3
Inside diameter: 88mm
Material thickness: 3mm.
32
Flat Head Screw Mercedes-Benz
$17.50
Mercedes-Benz Bolt
M14x1.5x90. Spring control arm to wheel bearing left. Spring control arm to wheel bearing m 14x1,5x75.
35
Hexagon Nut Mercedes-Benz
Mercedes-Benz M14X1.5
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Tie rod to steering knuckle. Intermediate lever to pivot bearing. Trailer hitch to frame. Extension to rear subframe,front. Rod to spring control arm. Joint to steering knuckle left. Joint to steering knuckle m14 x 1,5. Joint to wishbone. Spring control arm to wheel bearing m14 x 1,5.
35
Hexagon Nut Mercedes-Benz
Mercedes-Benz Nut
Lower control arm to front subframe. Shock absorber to frame. Lower control arm to steering knuckle.
38
Screw Mercedes-Benz
$22.00
Mercedes-Benz Spring control arm to rear subframe. M12x1.5x84. Torsion bar to rear axle.
44
Hexagon Nut Mercedes-Benz
$2.50
Mercedes-Benz M12x1.5. Tie rod to rear subframe. Spring control arm to rear subframe m 12. Bearing cup to bearing bracket. Steering intermediate arm bearing. Drag link to steering arm. Strut to rear subframe.
50
Screw Mercedes-Benz
$3.40
Mercedes-Benz Bolt
Protective plate to spring control arm. Covering to spring control arm. Trim mount to left spring link. Mounting, cover. Guard to left spring link. Cover on spring link and thrust arm. At left side member.
71
Window Mercedes-Benz
$8.00
Mercedes-Benz Strut rod to left wheel carrier. Camber struts to wheel bearing. Strut rod to wheel carrier, lh.
77
Cap Screw Mercedes-Benz
$6.25
Mercedes-Benz Thrust arm, camber strut and strut on rear subframe. M12x1.5x60. Camber struts to rear subframe. Thrust arm/camber strut/tension rod to rear-axle bracket. Thrust arm to rear subframe.
110
Screw Mercedes-Benz
$12.00
Mercedes-Benz Tie rod to wheel bearing. M12X1.5X60-10.9
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Strut to rear subframe. Tie rod to wheel carrier.
122
Hexagon Nut Mercedes-Benz
$3.90

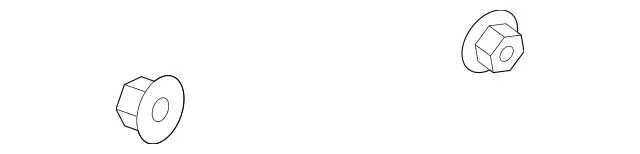

Mercedes-Benz Parts Kit, Tie Rod
M10
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 16mm. Rod to torsion bar. Shock absorber to frame. Trailer coupling to bracket. Camber struts to wheel bearing m 10. Shock absorber to spring control arm m 10. Axle housing to rear subframe. Tie rod to wheel bearing m10.
128
Nut Mercedes-Benz
Mercedes-Benz Steering shock absorber to front axle. Steering shock absorber to drag link and to frame.
128

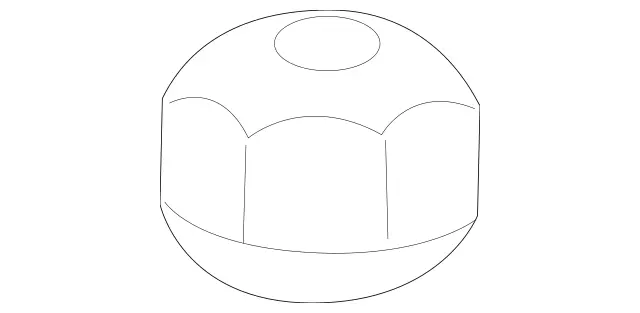

Hexagon Nut Mercedes-Benz
$4.40
Mercedes-Benz M10
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Propeller shaft to transmission. Shock absorber to lower control arm m 10x1. Shock absorber to spring control arm m 10x1. Hydropneumatic spring leg to spring control arm m 10. Shock absorber to frame. Hydropneumatic spring leg to rear axle.
131
Parts Kit, Eccent Screw Mercedes-Benz
$27.50
Mercedes-Benz Repair Kit
Tie rod to rear subframe. For adjusting work only.
146
Window Mercedes-Benz
$9.75
Mercedes-Benz Repair Kit
Thrust arm, camber strut and strut on rear subframe. Thrust arm to wheel bearing to a 220 350 31 06. Tie rod to wheel bearing. Left tie rod to wheel carrier. Camber strut to wheel carrier. Strut to wheel bearing.
149
Screw Mercedes-Benz
Mercedes-Benz Thrust arm to wheel bearing to a 140 350 54 06. Strut to wheel bearing m 12x1,5x77. Strut to wheel bearing m 12 x 1,5.
149
Cap Screw Mercedes-Benz
$17.50
Mercedes-Benz M12x1.5x80. Camber struts to wheel carrier left. Thrust arm to wheel bearing to a 220 350 31 06. Camber struts to wheel bearing m 12x1,5x80.
155
Hexagon Nut Mercedes-Benz
$7.50
Mercedes-Benz Spring control arm to rear subframe. Upper transverse control arm to steering knuckle. Lower control arm to steering knuckle. Torsion bar to frame. Lower joint to control arm. Joint to steering knuckle. Shock absorber to lower control arm.
158
Screw Mercedes-Benz
$39.50
Mercedes-Benz Thrust arm to rear subframe to a 220 350 31 06. M12x1.5. Tension thrust camber struts to rear axle at left. Thrust arm/camber strut/tension rod to rear-axle bracket. Tie rod to rear subframe.
